31
Once you want to modify the VLAN Group, check on the ID
parameter, the ID VLAN configuration window will pop out.

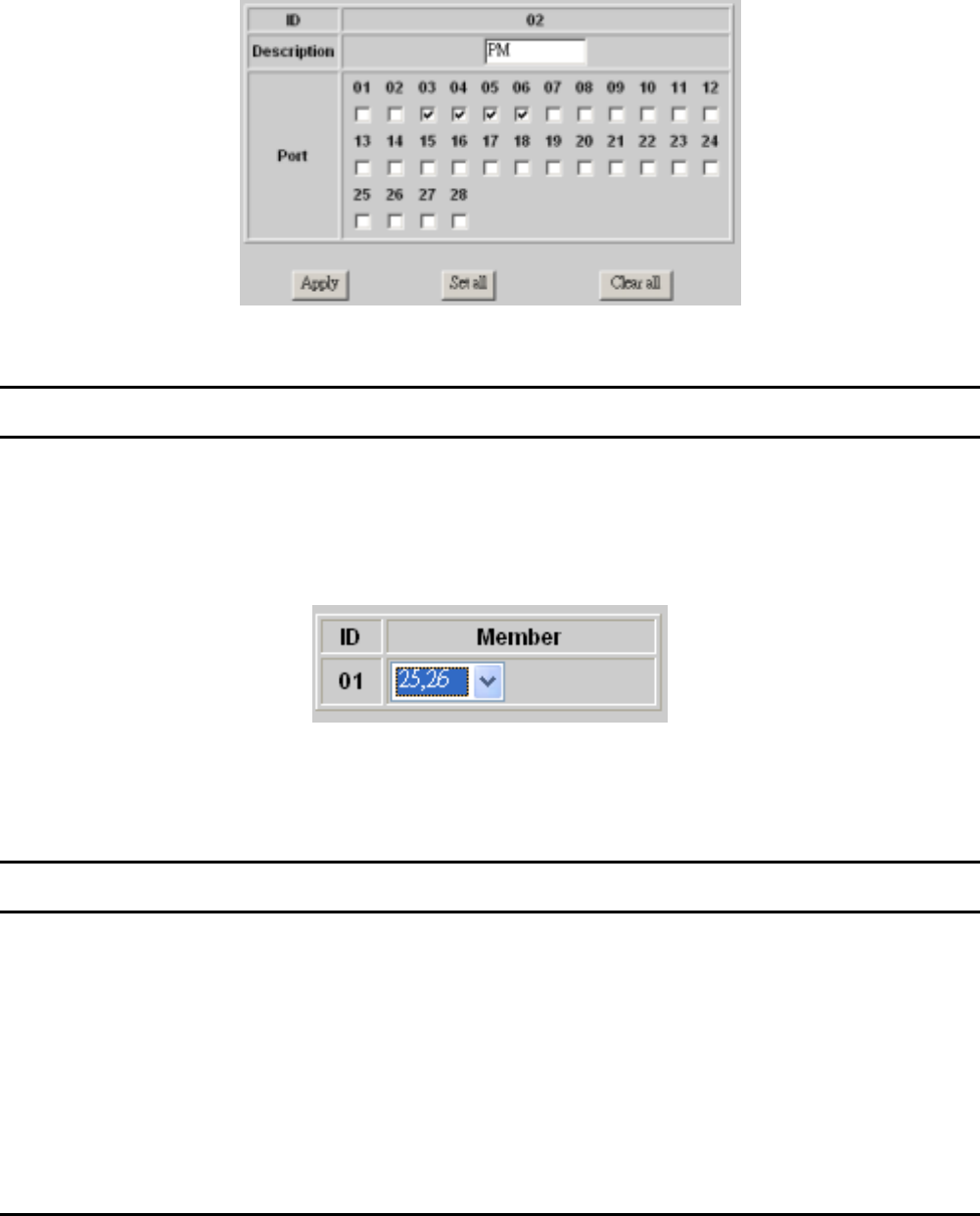

Figure 20. VLAN Settings
Trunk Setting
The Trunk function enables to cascade two devices with a double
times bandwidth (up to 4000Mbps in full duplex mode).
There is only one selection for the trunk setting, port 25 and port 26,
or select “disable” for closing this function.
Figure 21. Trunk Settings
Be sure that the selected trunk setting port must connect to the device
with a same VLAN group.
Mirror Setting
Port Mirroring is a method of monitoring network traffic that forwards
a copy of each incoming and/or outgoing packet from one port of a
network switch to another port where the packet can be studied. It
enables the manager to keep close track of switch performance and
alter it if necessary.
