2.2 Installing motherboard components
Chapter 2: Setting up 19
Note: Do not use excessive force to push the
CPU expansion board into place. When
properly aligned, the board should slot into
place easily.

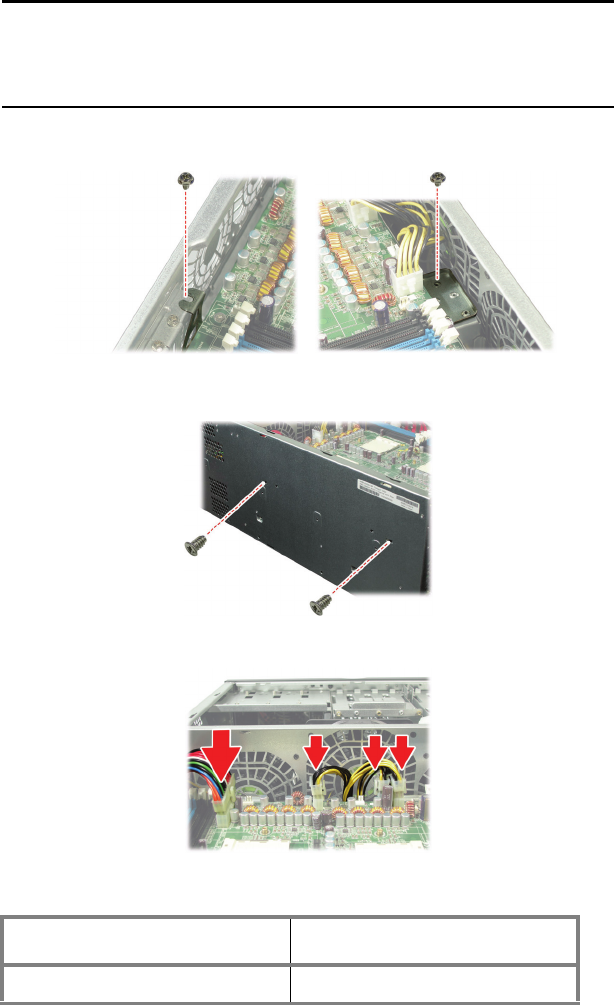

6. Secure in place with two screws as shown.
7. Insert two further coutersunk screws through the chassis
to secure the expansion board to the chassis as shown.
8. Connect the five power cables as shown.
9. Replace the chassis covers.
Screws Required Location
4 hex head #6-32-L6 Chassis cover and CPU board
