27D-Link DIR-860L User Manual
Section 3 - Conguration

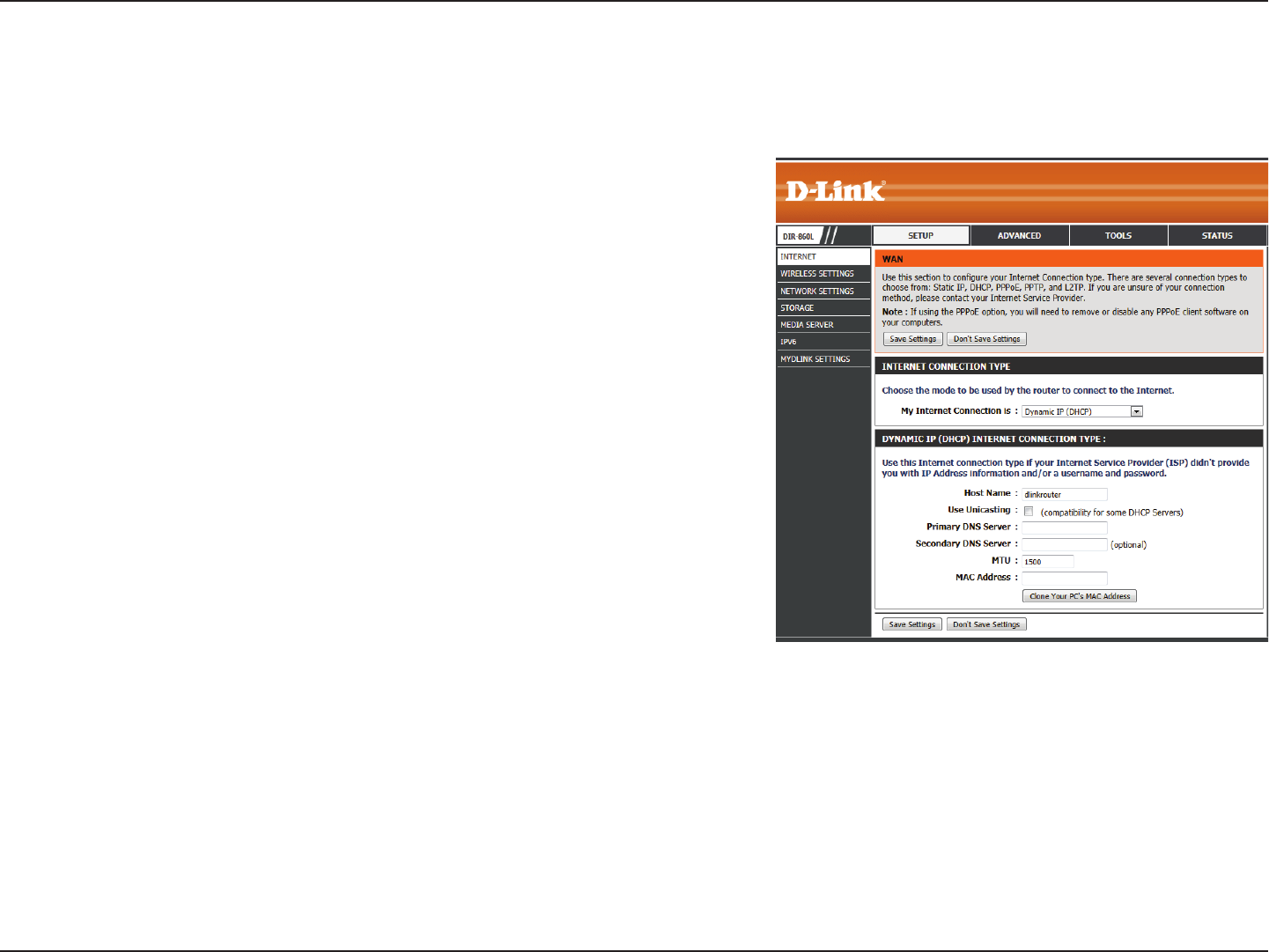

Select Dynamic IP (DHCP) to obtain IP Address information automatically
from your ISP. Select this option if your ISP does not give you any IP
numbers to use. This option is commonly used for cable modem services.
Advanced Domain Name System (DNS) enhances your Internet performance
by getting you the information and web pages you are looking for faster
and more reliably. In addition, it improves your overall Internet experience
by correcting many common typing mistakes automatically, taking you
where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no guarantee as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput
of the WAN-LAN connectivity of the router.
The Host Name is optional but may be required by some ISPs. Leave
blank if you are not sure.
Check the box if you are having problems obtaining an IP address from
your ISP.
Enter the Primary and Secondary DNS server IP addresses assigned by your ISP. These addresses are usually obtained automatically
from your ISP. Leave at 0.0.0.0 if you did not specically receive these from your ISP.
Maximum Transmission Unit - you may need to change the MTU for optimal performance with your specic ISP. 1500 is the default
MTU.
The default MAC Address is set to the Internet port’s physical interface MAC address on the Broadband Router. It is not recommended
that you change the default MAC address unless required by your ISP. You can use the Clone Your PC’s MAC Address button to
replace the Internet port’s MAC address with the MAC address of your Ethernet card.
My Internet
Connection:
Enable Advanced
DNS Service:
Enable True
Gigabit Routing
Connectivity:
Host Name:
Use Unicasting:
Primary/Secondary
DNS Server:
MTU:
MAC Address:
Dynamic IP (DHCP)
If you are unsure what method you use to connect to the Internet, try this rst. Cable modems usually use this type of connection
