89D-Link DIR-860L User Manual
Section 3 - Conguration

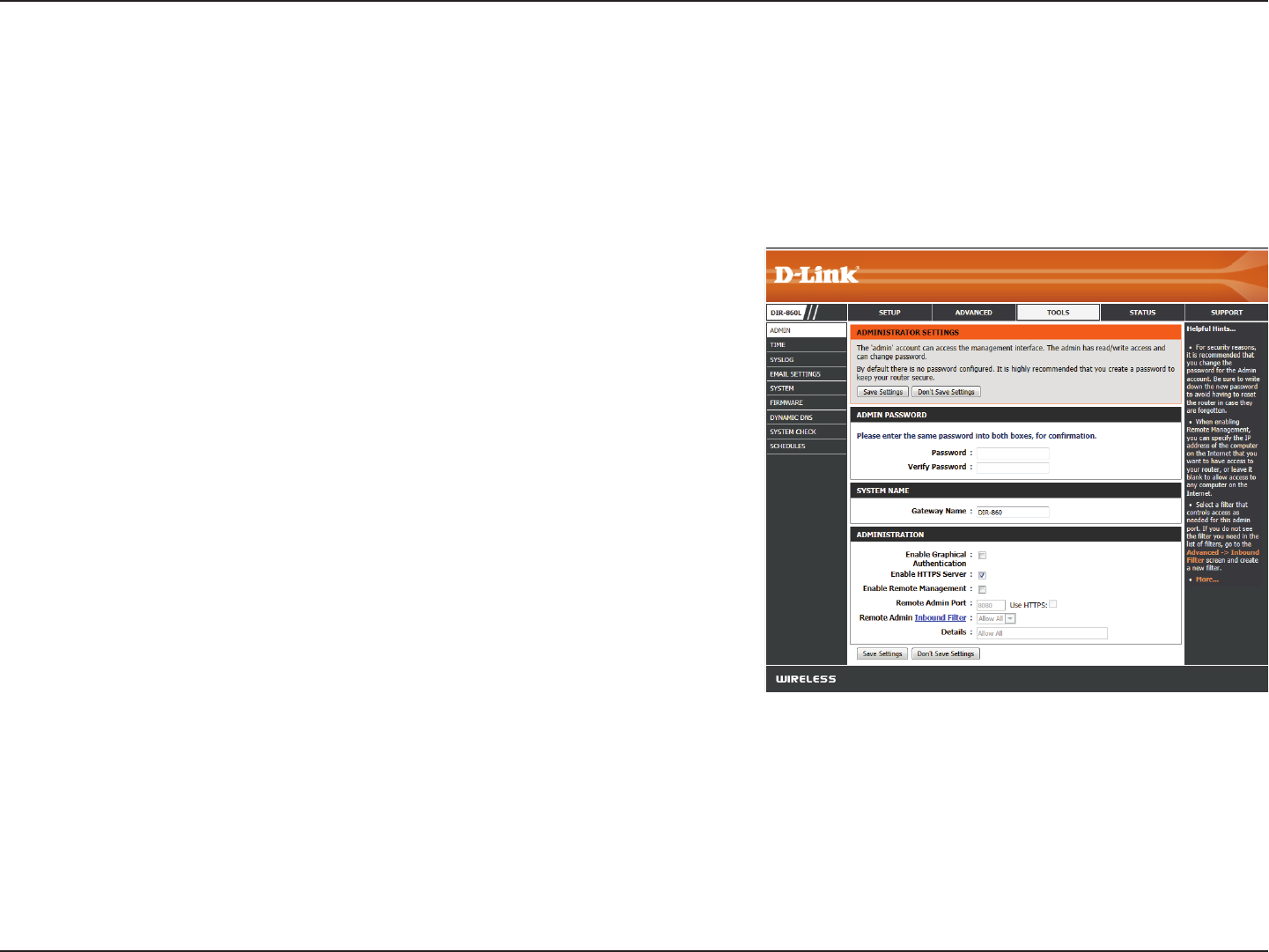

Admin
This page will allow you to change the Administrator password. You can also enable Remote Management. Admin has full read/write access to the
router’s settings.
Tools
Here you can enter a new password for the Administrator Login Name. The
administrator can make changes to the settings. Enter the new password
twice for verication.
Enter a name for your router.
Enables a CAPTCHA challenge-response test, which requires users to type
letters or numbers from a distorted image displayed on the screen. This
prevents unauthorized users from using automated methods to gain
access your wireless network.
Check to enable HTTPS to connect to the router securely. This means
to connect to the router, you must enter https://dlinkrouter.local. or
https://192.168.0.1 (for example) instead of http://dlinkrouter.local. or
http://192.168.0.1.
Remote management allows the DIR-860L to be congured from the
Internet by a web browser. A username/password is still required to access
the Web Management interface.
The port number used to access the DIR-860L is used in the URL. For example: http://x.x.x.x:8080 where x.x.x.x is the Internet IP address
of the DIR-860L and 8080 is the port used for the Web Management interface. If you have enabled HTTPS Server, you must enter https://
as part of the URL to access the router remotely.
This section will list any rules that are created. You may click the Edit icon to change the settings or enable/disable the rule, or click the
Delete icon to remove the rule. Details will display the current status of the rule.
Admin
Password:
Gateway Name:
Enable Graphical
Authentication:
Enable HTTPS
Server:
Enable Remote
Management:
Remote Admin
Port:
Remote Admin
Inbound Filter:
