69D-Link DIR-860L User Manual
Section 3 - Conguration

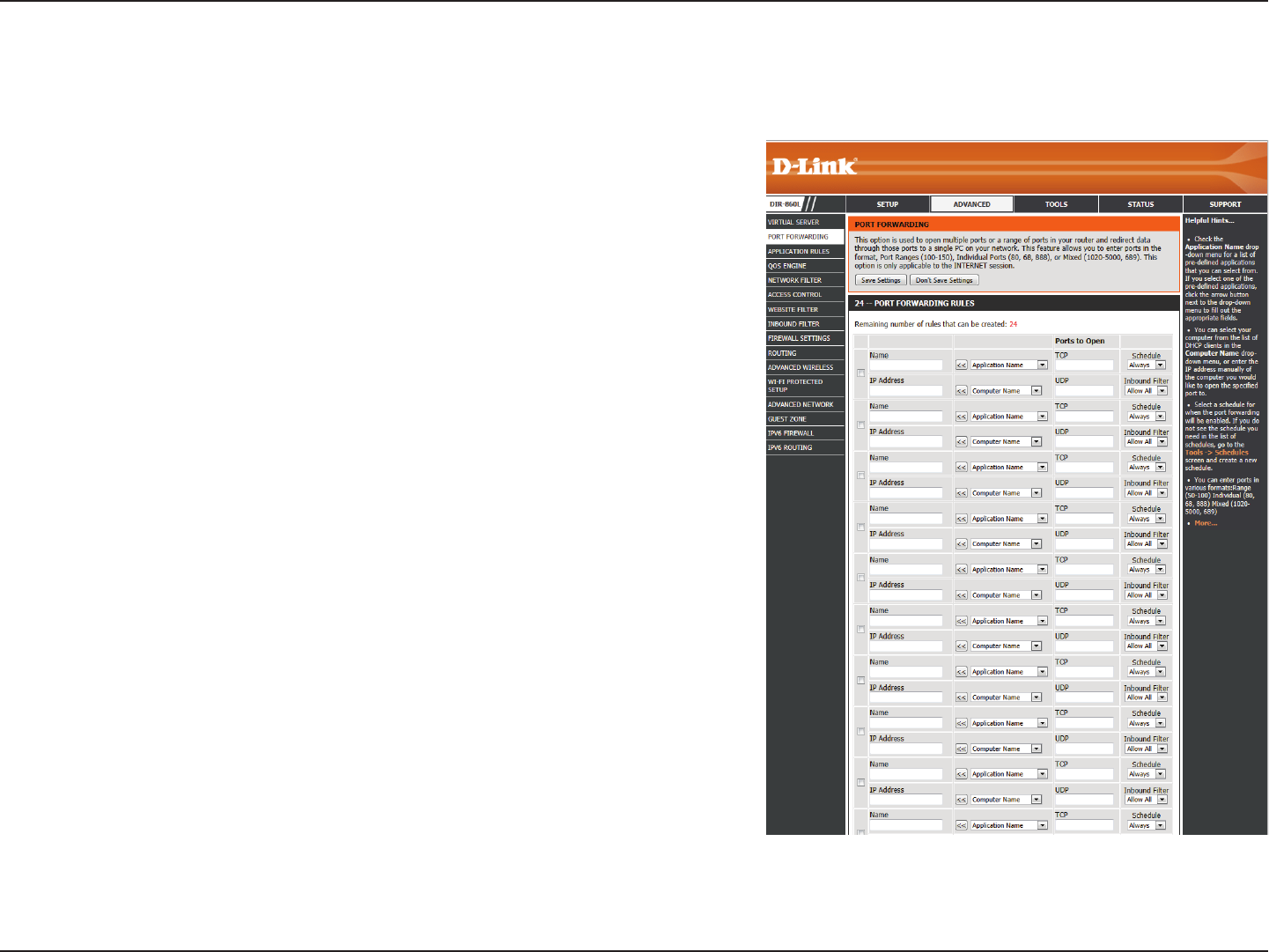

This page will allow you to open a single port or a range of ports.
Port Forwarding
Enter a name for the rule or select an application from the
drop-down menu. Select an application and click to populate
the elds.
Enter the IP address of the computer on your local network that
you want to allow the incoming service to. If your computer is
receiving an IP address automatically from the router (DHCP),
your computer will be listed in the “Computer Name” drop-
down menu. Select your computer and click <<.
Enter the TCP and/or UDP port or ports that you want to open.
You can enter a single port or a range of ports. Separate ports
with a comma. Example: 24,1009,3000-4000
The schedule of time when the Virtual Server Rule will be
enabled. The schedule may be set to Always, which will allow
the particular service to always be enabled. You can create your
own times in the Tools > Schedules section.
Select Allow All (most common) or a created Inbound lter.
You may create your own inbound lters in the Advanced >
Inbound Filter page.
Name:
IP Address:
TCP/UDP:
Schedule:
Inbound Filter:
