IPL T CR48 • Installation and Operation
Installation and Operation, cont’d
2-4
Furniture or projector mounting
In addition to using the IPL T CR48 unit on a rack, it can also be
furniture or projector mounted. Furniture mount or projector
mount the interface using the optional mounting kit (Extron part
#70-212-01, furniture, or Extron part #70-217-01, projector) as
follows:
1
. Attach the mounting brackets to the interface with the
machine screws provided (gure 2-3).
2. If feet were previously installed on the bottom of the
interface, remove them.
3. For furniture mounting, hold the interface with the
attached brackets against the underside of the table or
other furniture. Mark the location of the screw holes of the
bracket on the mounting surface.
4. For furniture mounting, drill 3/32” (2 mm) diameter pilot
holes, 1/4” (6.3 mm) deep in the mounting surface at the
marked screw locations.
5. For furniture mounting, insert #8 wood screws into the
four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4” of the screw head
protrudes.
6. For furniture mounting, align the mounting screws with
the slots in the brackets and place the interface against the
surface, with the screws through the bracket slots.
7. For furniture mounting, slide the unit slightly forward or
back, then tighten all four screws to secure it in place.
8. For projector mounting, secure the interface to a projector
mount or other surface by inserting the mounting bolt
through the bracket’s slotted hole.

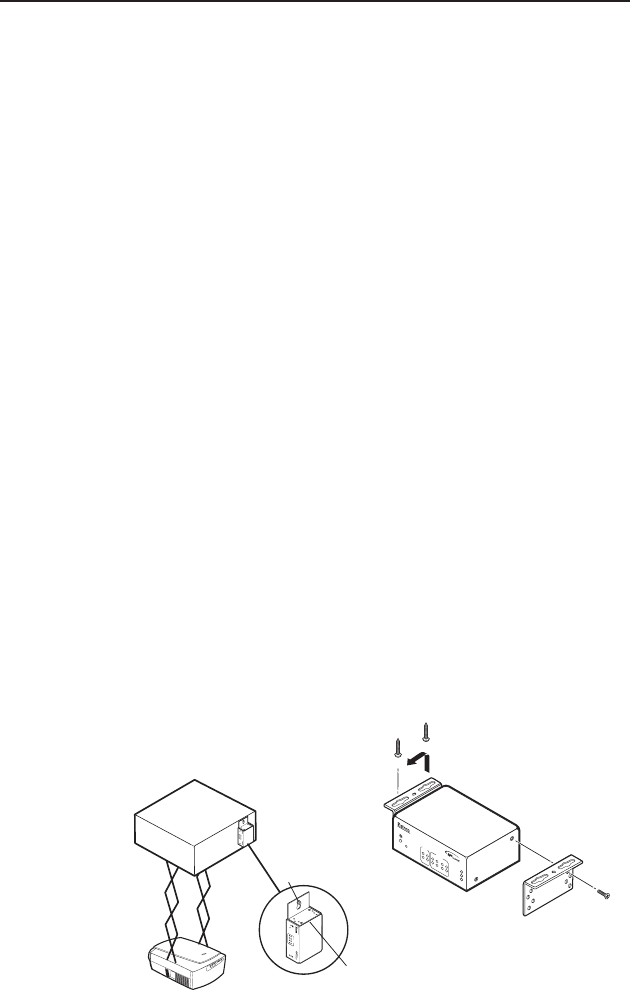

Figure 2-3 — Furniture and projector mounting for
the IPL T CR48
IPL T CR48
R
4
2
31
INPUT
100
LINK
ACT
4
2
3
1
RELAY
86
7
5
Furniture Mount
Projector Mount
IPL T S2
1
R
100
COM
TX
RX
RTS
CTS
LINK
ACT
2
2
4
Mounting
Bolt
Projector
Mounting
Bracket
Projector
Projector
Lift
Control
IPL T S2
1
R
100
COM
TX
RX
RTS
CTS
LINK
ACT
2
24
