IPL T CR48 • Installation and Operation
2-7

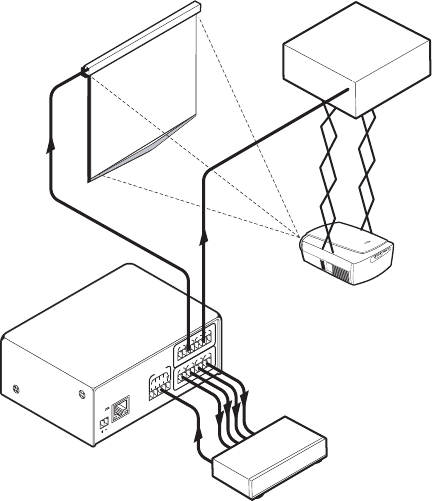

Figure 2-7— Example application using input and
relay ports
Operation
Connect power cords and turn on the relay controlled output
devices (projector lifts, screen lifts, lights, etc.), input (trigger)
devices (motion detectors, alarms, photo eyes, etc.), relay
interface, and network devices (PC, laptop, network equipment).
Check indicator LEDs on the PC/laptop, on the interface, and
on the network hub/router, etc., to ensure that all devices are
plugged in and communicating. The IPL T CR48 is ready to be
congured (see chapter 3, “Connection and Conguration”).
If connection or communication problems occur, see
“Troubleshooting” in chapter 4. If the troubleshooting tips do
not help, check with your local network administrator, or call
the Extron S
3
Sales & Technical Support Hotline.
LAN
POWER
12V
0.5A
INPUT
21
3
4
5
6
7
8
1
2
3
4
Extron
IPL T CR48
Ethernet Control
Interface
Projector
Lighting System
Screen Control
Projector
Lift
Control
