Repair Information 4-20
4059-XXX
Developer Drive Assembly
1. Remove the inner EMC shield.

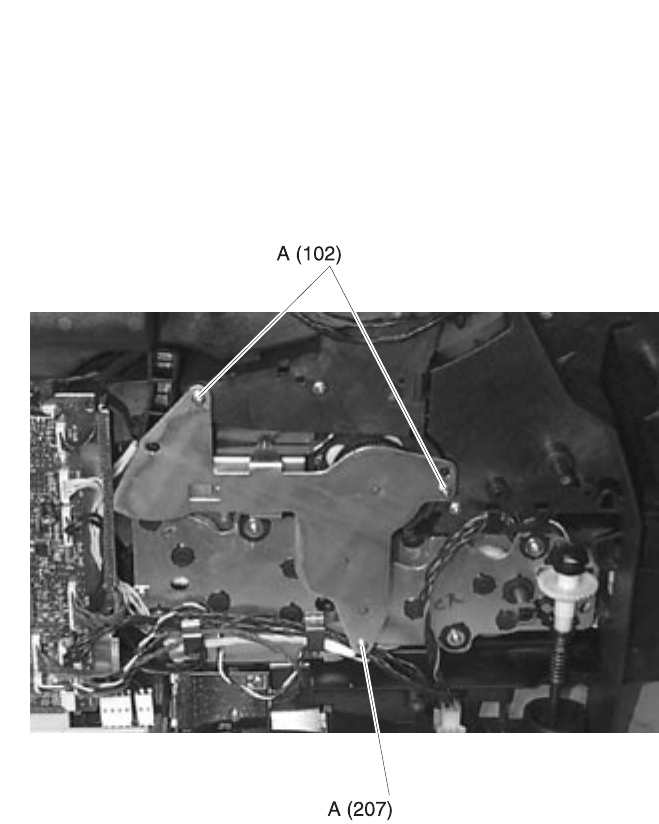

2. Remove the three developer drive assembly mounting screws
(A).
3. Remove the developer drive assembly.
Note: Be sure the developer drive assembly wheel aligns with the
hub on the main drive assembly when reinstalling the assembly.
