Repair Information 4-38
4059-XXX
Integrated Tray Compensator Pick Roll Assembly
1. Remove the paper tray.
2. Place the printer on its side.
3. Locate the compensator assembly on the bottom of the printer
and pull the compensator arm away from the printer.

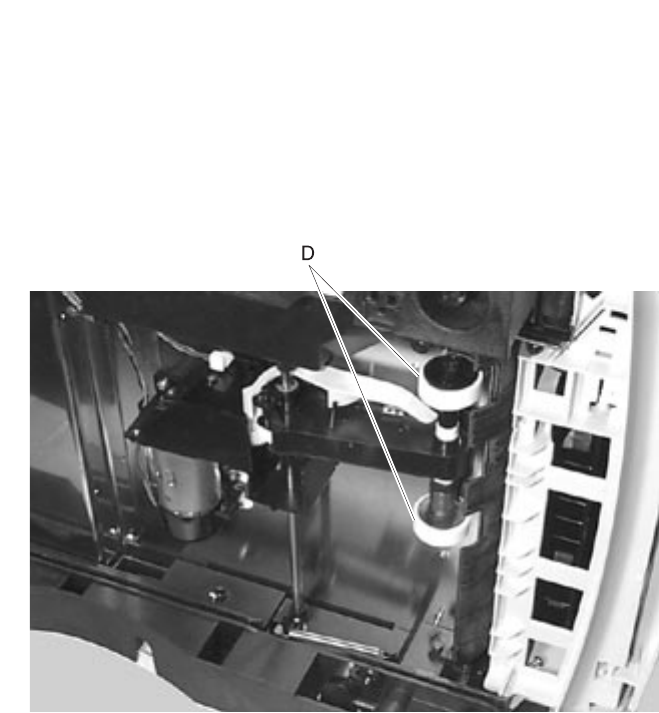

4. Unsnap the pick roll assembly (D) from its mounting and
remove.
