4-27 4059 Service Manual
4059-XXX
Fuser Board
1. Remove the fuser assembly.

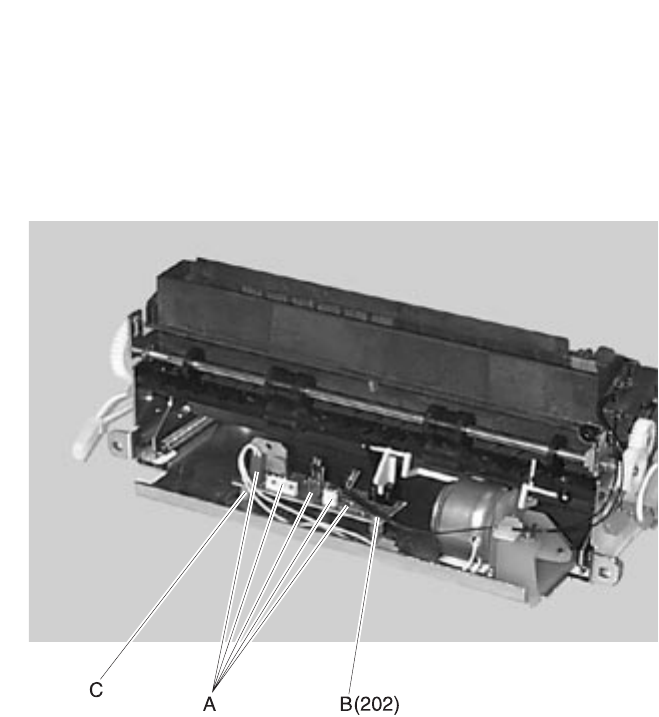

2. Disconnect the cables (A) from the fuser board.
3. Remove the fuser board mounting screw (B).
4. Release the fuser board from the standoff tab (C) and lift the
fuser board from the fuser assembly.
