Nortel Switched Firewall Browser-Based Interface Users Guide

Browser-Based Interface forms reference  147

216383-D October 2005

Events form

The Diagnostics/Events form displays the contents of the event log file (see

Diagnostics/Events form).

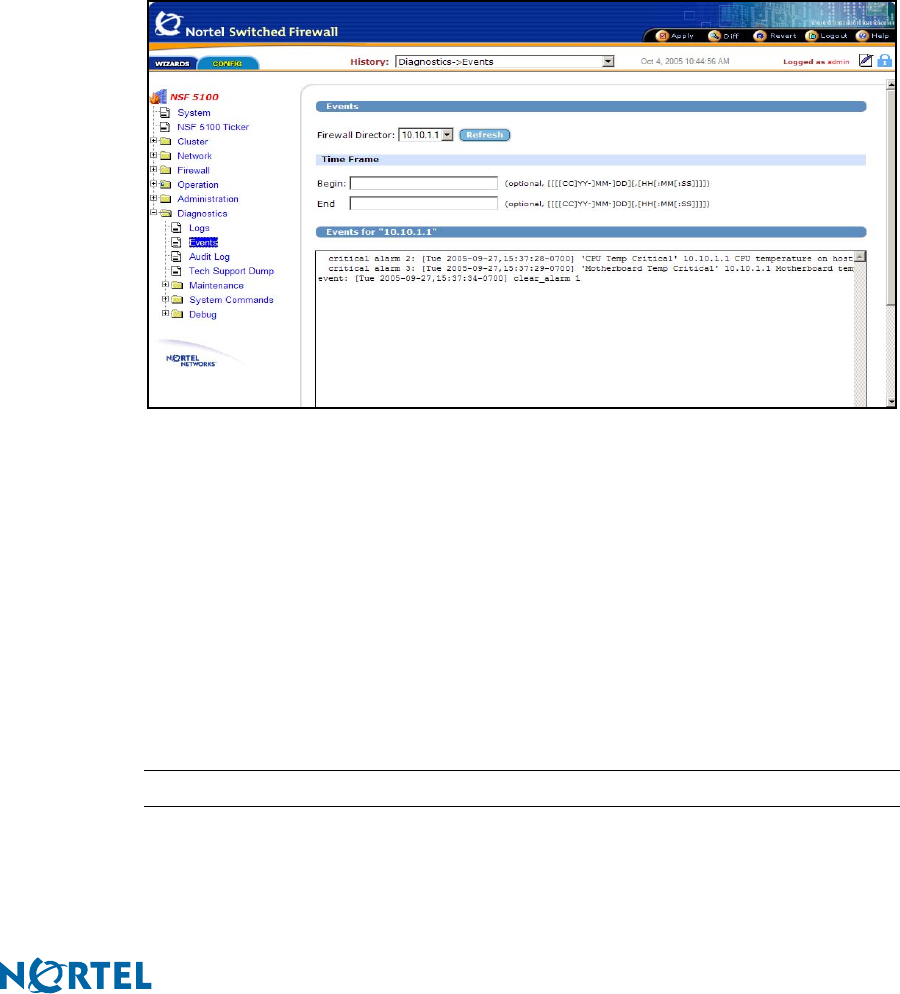

Figure 111 Diagnostics/Events form

Fields and buttons on the Diagnostics/Events form are as follows:

 Firewall Director provides a list containing the IP addresses of the Firewall Directors.

Refresh displays the details of the selected Firewall Director.

 Time Frame provides two entry fields for setting the time filters for displaying event

information.

 Begin provides an entry field for setting the begin time filter.

 End provides an entry field for setting the end time filter.

 Events displays the information extracted from the event log file on the selected Firewall

Director.

NOTE – Only the most recent 64 K of event information is displayed.
