License Management form
Use the Firewall/Licenses form to modify or install additional Check Point licenses on the
Firewall (see Firewall/License Management form).

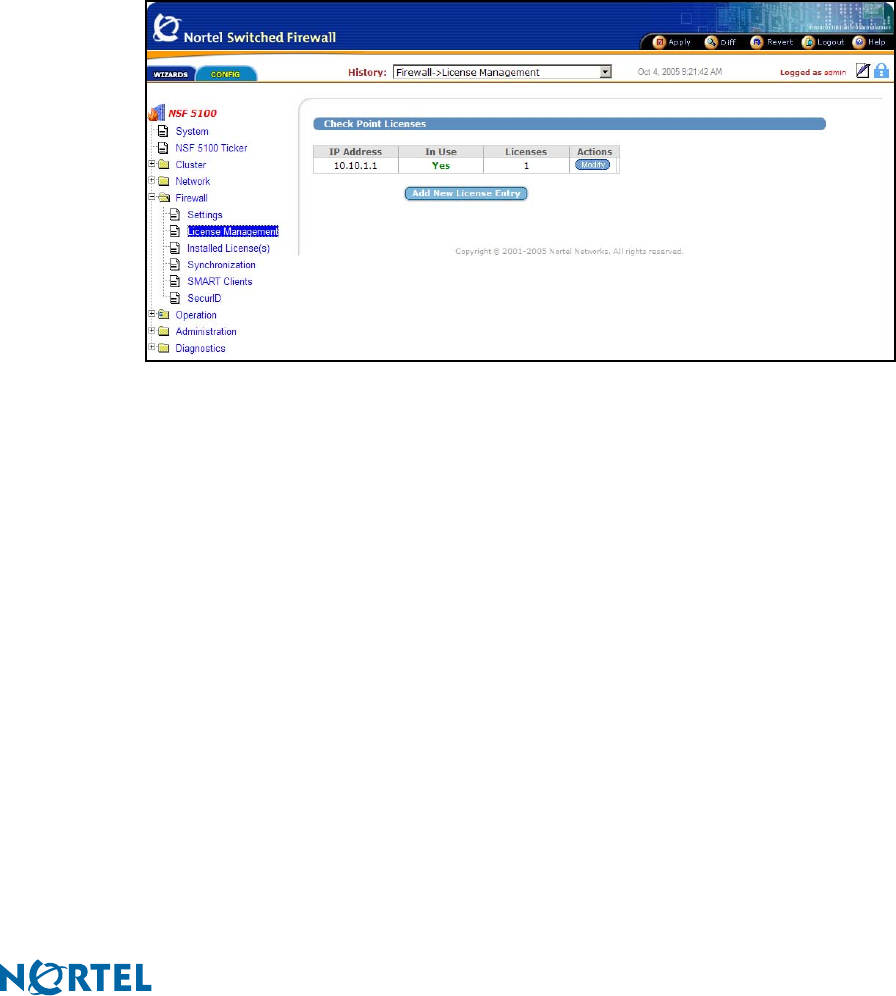

Figure 61 Firewall/License Management form
Fields and buttons on the Firewall/License Management form are as follows:
IP Address is the address for the Firewall.
In Use
Yes indicates that the IP address is currently assigned to a Firewall.
No indicates that the IP address is available to configure a new Firewall.
Licenses shows the number of Check Point licenses currently configured for each IP
address.
Actions provides two choices, which are visible only if entries are present.
Click Modify to modify the Check Point licenses for the IP address.
Click Delete to delete the Check Point licenses for the IP address.
Add New License Entry provides a form that permits addition of Check Point licenses for
the IP address (see Firewall/License Management/Add New License Entry form on page
92).
