Drawing a Circuit with Pico 2-15
Parameter Display for Timing Relays
ttt

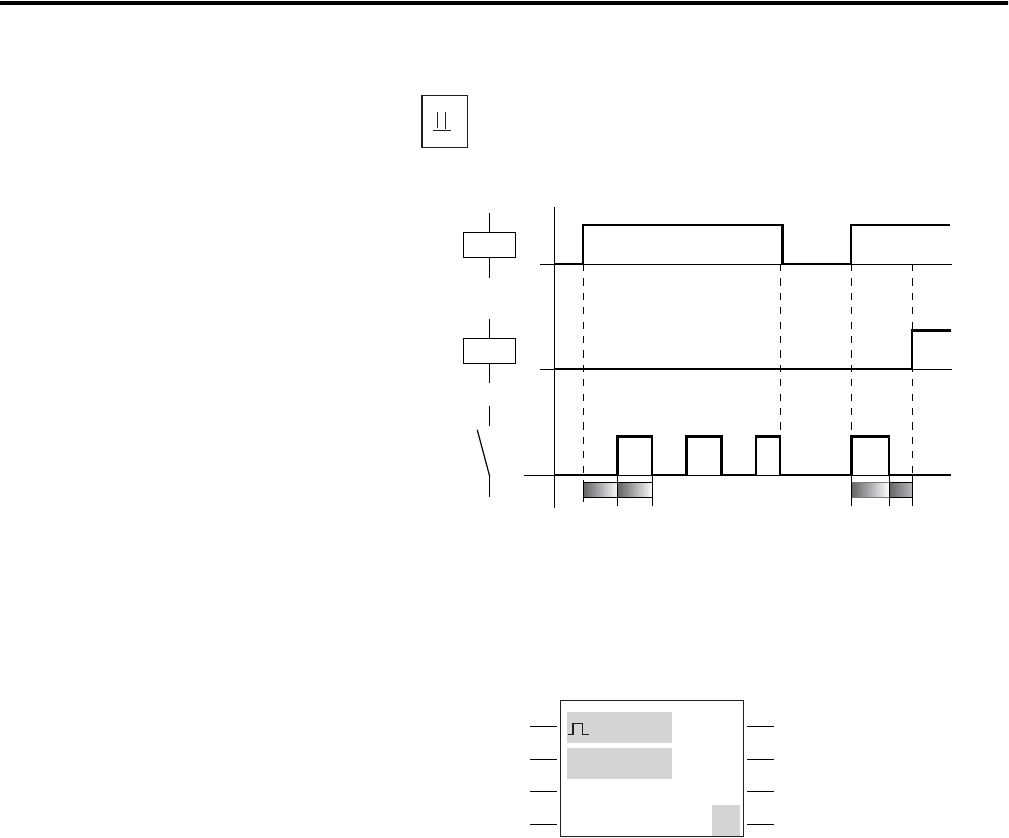

Timing Relay, Flashing
Trigger
Reset
Timer Output
Flash Frequency = 1/2 x setpoint
on
on
on
RES
T1
+
S 30.00
{ TRG
00.00
Switch Function
Time Units
Trigger (Connected)
Reset (Not Connected)
Accumulated Time
Setpoint
Timer Number
Parameter Display
(Access Control)
