Publication 1760-GR001C-EN-P - April 2005
Pico Interface Socket 3-3
PicoSoft
PicoSoft is an optional PC program that creates, stores, and manages
Pico circuit diagrams. It transfers the circuit diagrams from the PC to
Pico or vice versa using a special PC interface cable.
The PicoSoft software also includes extensive on-line Help.
To use the on-line Help, start PicoSoft and choose Contents in the
Help menu. Context sensitive help is also available. Choose a menu
item with the mouse and press F1 while keeping the mouse button
pressed.
Software Compatibility
If you are using programming software to program the Pico controller,
be sure that you are using the correct software version.
Find the Series Letter

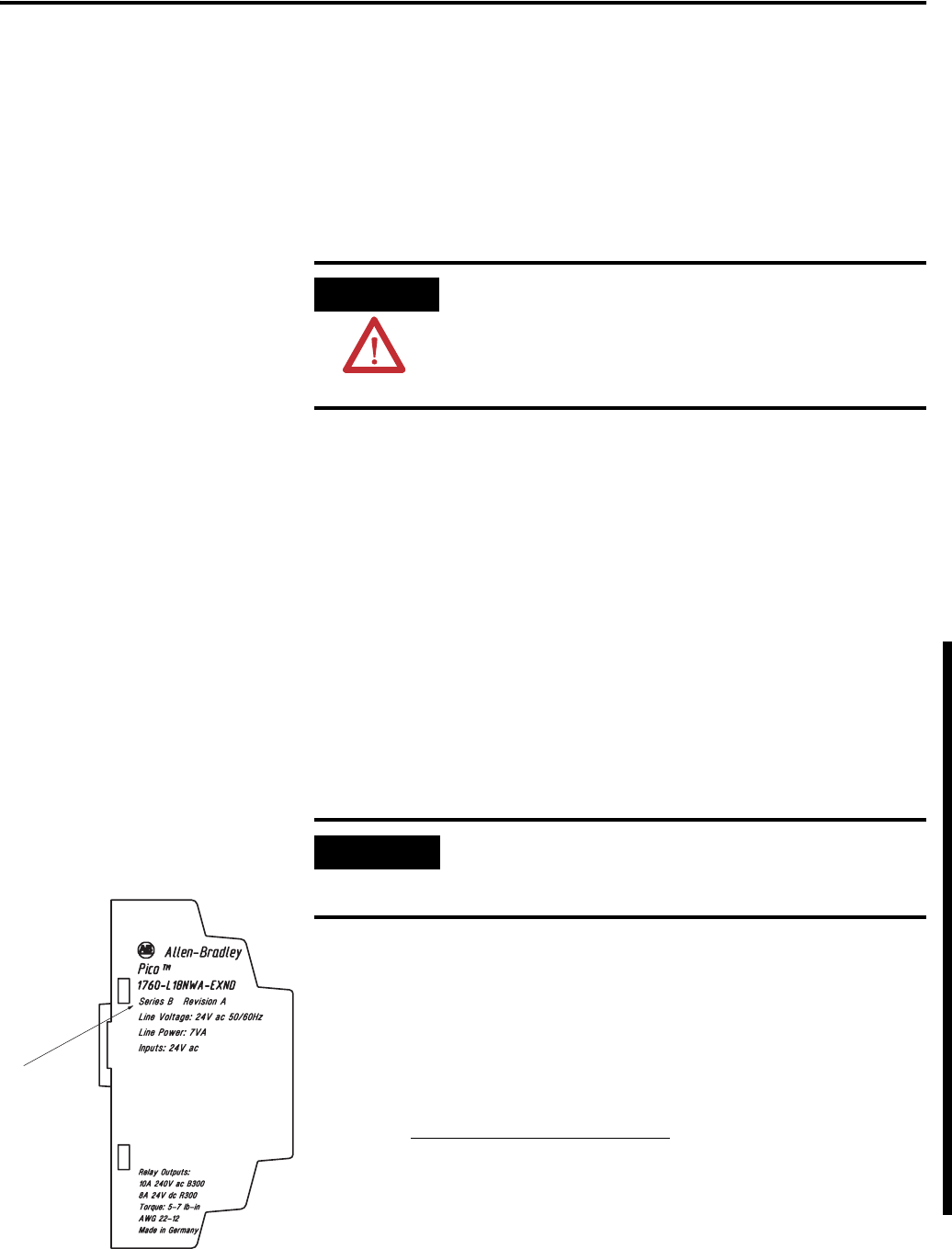

The Series letter is printed on the side of the housing as shown.
Download the Software
You can download a free copy of PicoSoft version 6.1 from our web
site. Go to http://www.ab.com/picosoft6
.
For PicoSoft Pro, please contact your Allen-Bradley Distributor or
Rockwell Automation representative.
ATTENTION
The PC interface cable is catalog number
1760-CBL-PM02 and is available as an accessory
item. Only use the Pico interface cable. Do not
attempt to make your own cable as this can cause
damage to the unit or present a shock hazard.
IMPORTANT
PicoSoft version 6.1 or higher must be used to for the
Series B Pico controller. Earlier versions of PicoSoft
can only be used with Series A Pico controllers.
