Publication 1760-GR001C-EN-P - April 2005
Drawing a Circuit with Pico 2-17
Real Time Switch

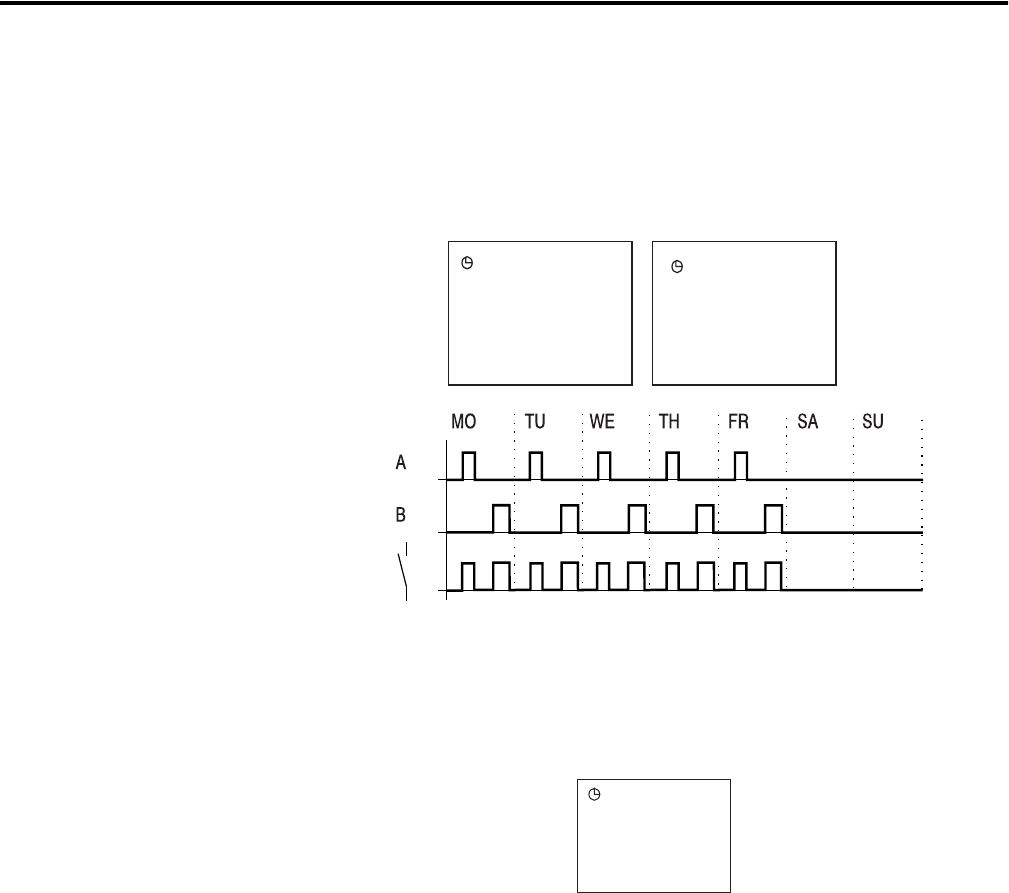

Example: Real Time Switch 1 switches on Monday through Friday
between 6:30 and 9:00 and again between 17:00 and 22:30 (5:00 pm
and 10:30 pm).
Parameter Display for Real Time Switches
D MO-FR
06:30
09:00
ON
OFF
1A
+
D MO-FR
17:00
22:30
ON
OFF
1B
+
on
on
on
D SU
ON --:--
OFF --:--
1A +
Week Day(s) from - to
On Time
Off Time
Real Time Switch Number
Parameter Display
(Access Control)
