Replacing the Antennas

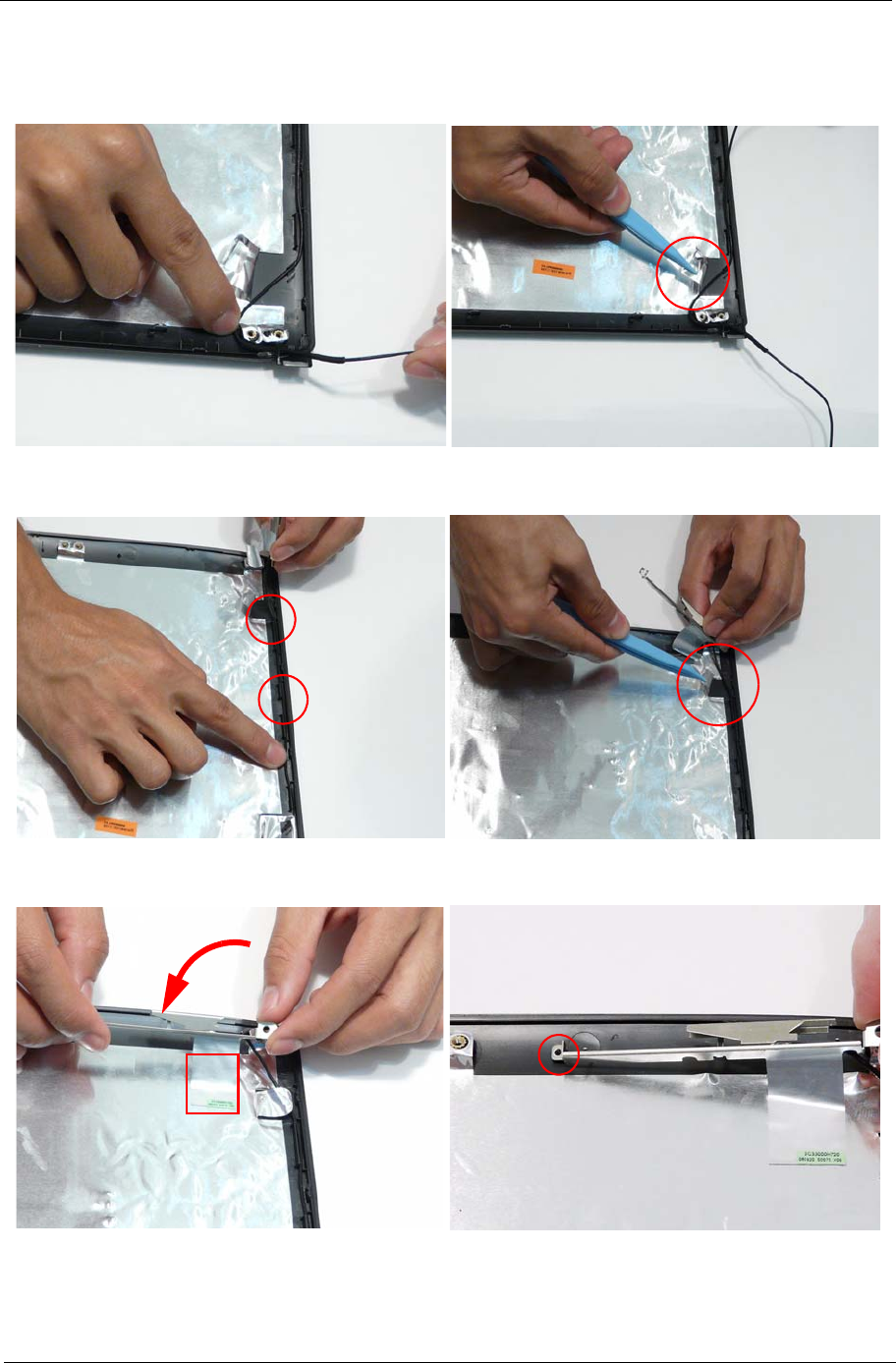

1. Run the right side Antenna cable as shown in the
hinge well to avoid trapping.
2. Run the cable as shown and replace the adhesive
strip.
3. Run the cable along the edge of the casing using
all available cable clips.
4. Run the cable as shown and replace the adhesive
strip.
5. Replace the Antenna in the casing as shown and
secure it in place with the tape.
6. Ensure that the securing pin is properly located.
