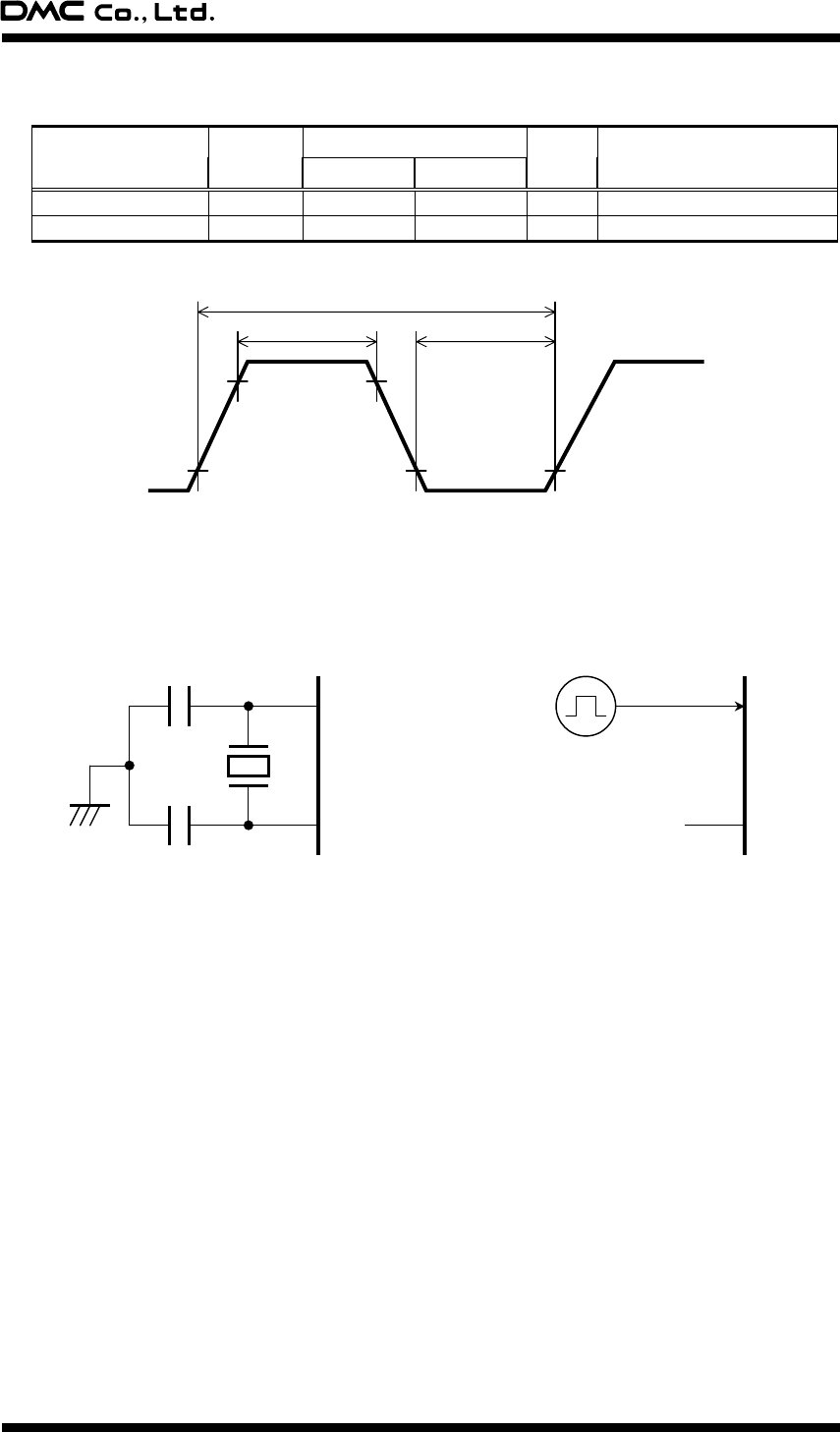

Document No. DER-S0008A 13 Version 1.0 ©2008 DMC Co., Ltd.
TSC-30/IC Product S
p
ecification
§ External clock timing
Rating
Item Symbol
Minimum Maximum
Unit Description
Input cycle tC 166 ns
Clock pulse width tWH, tWL 70 ns
§ Clock input circuit
X
IN
X
OUT
CIN
C
OUT
Using ceramic vibrator
X
IN
X
OUT O
p
en
External clock input circuit
X
IN
0.2V
CC
t
WH
t
WL
0.8VCC
tC
