10

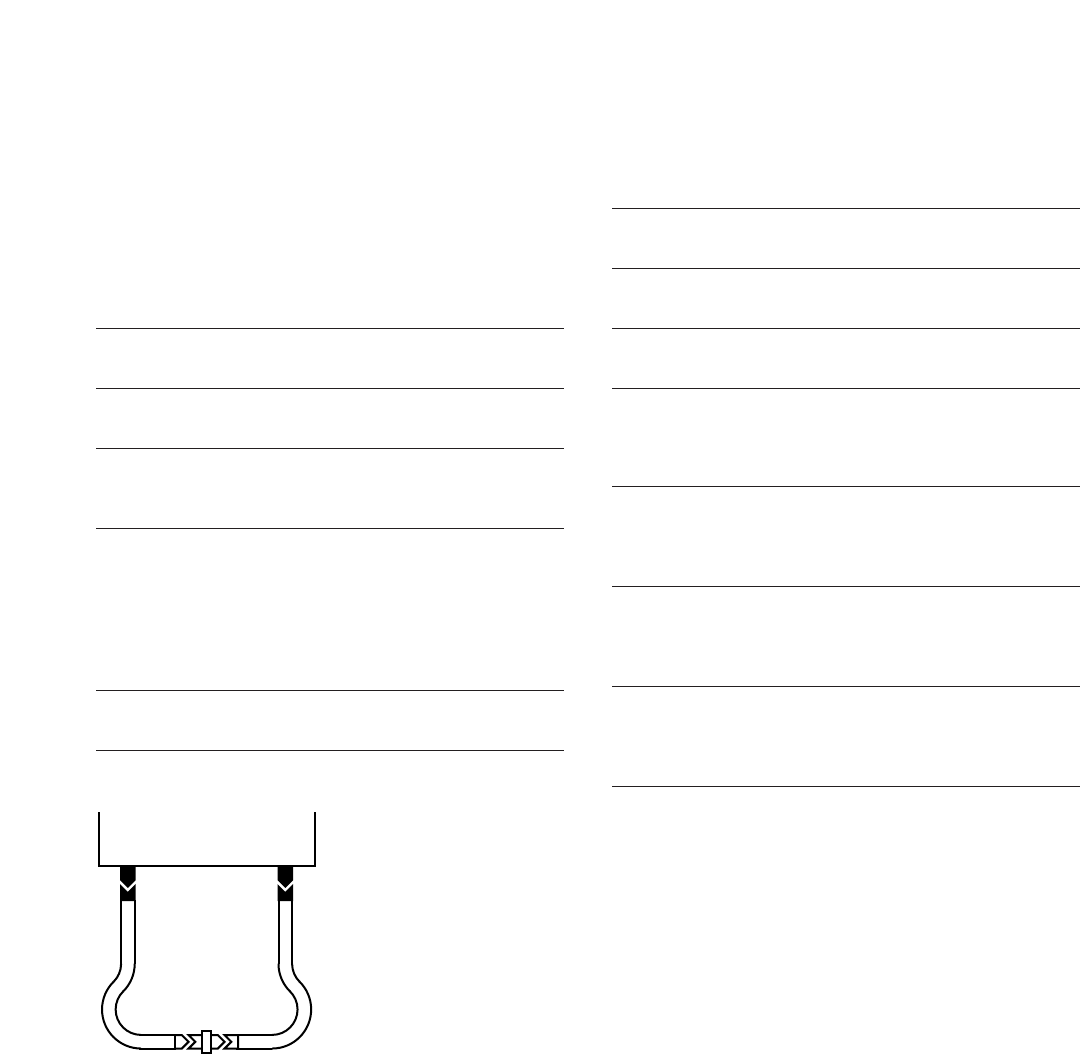

Configuration B. This cable arrangement is for appli-
cations where the device under test is connected
between cable ends. This setup offers more flexibil-
ity when connecting to the device under test.
For Agilent 8514B/8515A/85110A test sets
(3.5 mm rugged test port connectors)
Connector type
(on device side of
Cables/adapters cable/adapter)
For 3.5 mm 85131D semi-rigid cable set or 3.5 mm (m and f)
devices 85131F flexible cable set 3.5 mm (m and f)
For 7 mm 85132D semi-rigid cable set or 7 mm
devices 85132F flexible cable set 7 mm
For Type-N Use 7 mm cables and the 7-mm-
devices to-Type-N adapters included in the
85054B/D Type-N calibration kit
For Agilent 85110L test sets
(7 mm rugged test port connectors)
Connector type
(on device side of
Cables/adapters cable/adapter)
For 7 mm 11857D cable pair 7 mm
devices
For Agilent 8517B test sets
(2.4 mm rugged test port connectors)
Connector type
(on device side of
Cables/adapters cable/adapter)
For 2.4 mm 85133D semi-rigid cable set or 2.4 mm (m and f)
devices 85133F flexible cable set 2.4 mm (m and f)
For 3.5 mm 85134D semi-rigid cable set or 3.5 mm (m and f)
devices 85134F flexible cable set 3.5 mm (m and f)
For 7 mm 85135D semi-rigid cable set or 7 mm
devices 85135F flexible cable set 7 mm
For Agilent 8510XF systems (1.0 mm test port connectors)
Cables/adapters Connector type
For 1.0 mm 11500I (8.8 cm) test port cable 1.0 mm (f and f)
devices 11500J (16 cm) test port cable 1.0 mm (m and f)
11500K (20 cm) test port cable 1.0 mm (m and f)
11500L (24 cm) test port cable 1.0 mm (m and f)
For V-band V281C adapter 1.0 mm (f) to V-band
waveguide waveguide devices
devices V281D adapter 1.0 mm (m) to V-band
waveguide devices
For W-band W281C adapter 1.0 mm (f) to W-band
waveguide waveguide devices
devices W281D adapter 1.0 mm (m) to W-band
waveguide devices
network analyzer
test set
device
under
test
cable set
CONFIGURATION B
