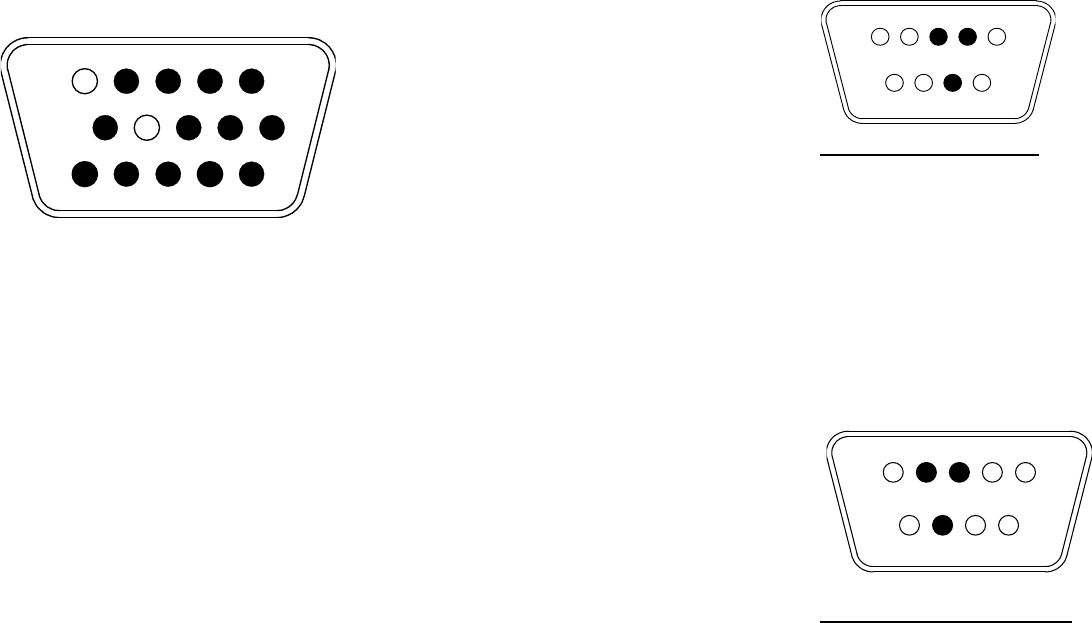

17. VGA CONNECTOR ASSIGNMENT
15
11
5
10
1
6
1.
---------------------------
Red
2. --------------------------- Green
3. --------------------------- Blue
4. --------------------------- Ground
5. --------------------------- No Connection
6. --------------------------- R-Ground
7. --------------------------- G-Ground
8. --------------------------- B-Ground
9. --------------------------- No Connection
10 --------------------------- Ground
11 --------------------------- Ground
12 --------------------------- SDA
13 --------------------------- H-sync
14 --------------------------- V-sync
15 --------------------------- SCL
29
18. RS-232 CONNECTOR ASSIGNMENT
Input Connector Assignment
1. ----------------------------------- No Connection
2. ----------------------------------- TXD
3. ----------------------------------- RXD
4. ----------------------------------- No Connection
5. ----------------------------------- No Connection
6. ----------------------------------- No Connection
7. ----------------------------------- Ground
8. ----------------------------------- No Connection
9. ----------------------------------- No Connection
OUT CONNECTOR ASSIGNMENT
1. ----------------------------------- No Connection
2. ----------------------------------- RXD
3. ----------------------------------- TXD
4. ----------------------------------- No Connection
5. ----------------------------------- No Connection
6. ----------------------------------- No Connection
7. ----------------------------------- Ground
8. ----------------------------------- No Connection
9. ----------------------------------- No Connection
