5200/5300 Adjustments (
not
for 5260, 5280) Geometry - 19
Important:
The
adjustment won’t work
if the plug is incorrectly
placed on the pins.
6 Connect the other end of
the monitor adjustment
cable (922-1513) to
the modem port.
Note:
You must use the
modem port. Remove the
internal modem and
plastic modem port
cover, if present.

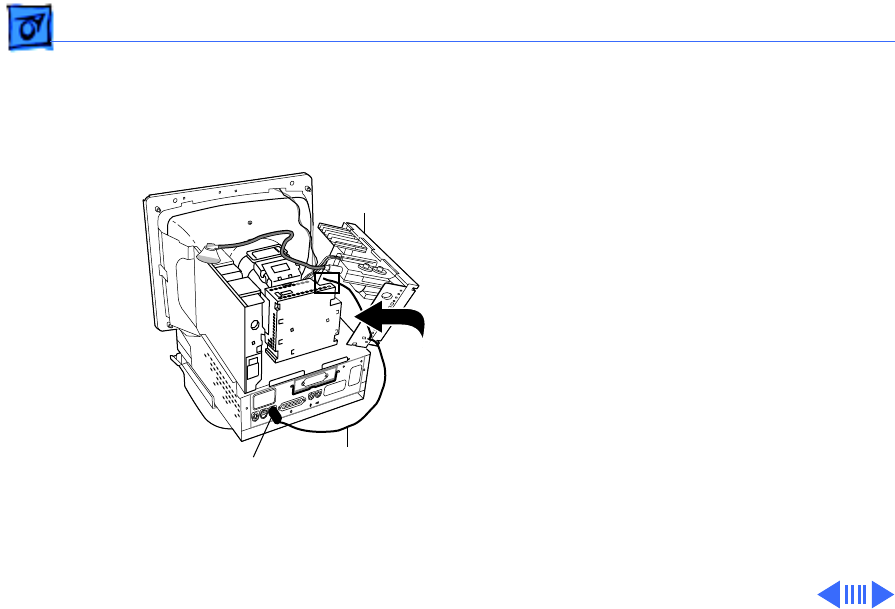

7 Route the monitor
adjustment cable so it
stays clear of sharp
edges and remains slack.
Analog
Board
Monitor
Adjustment
Cable
Modem
Port
