1.7 Connectors

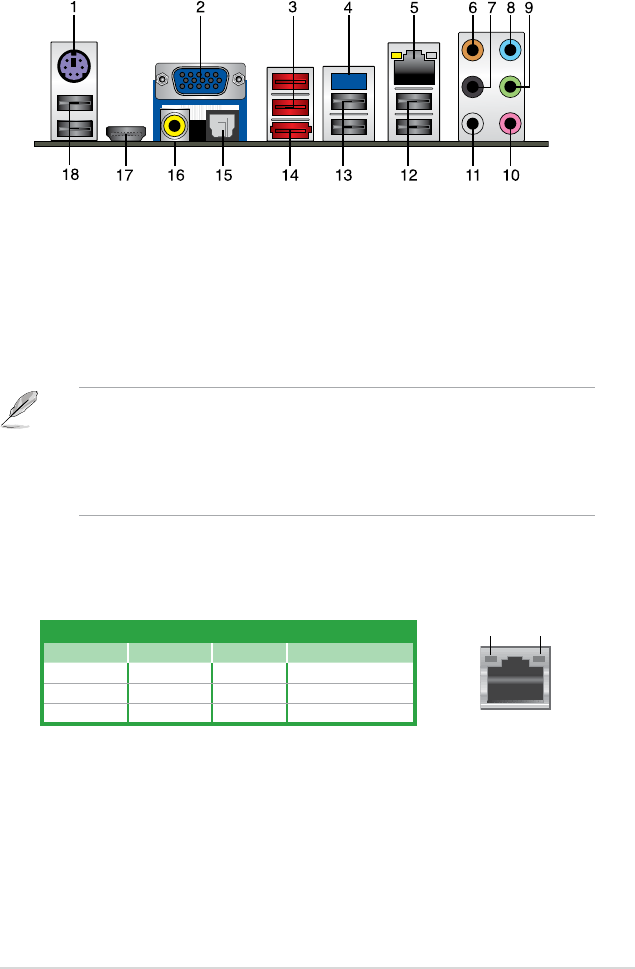

1.7.1 Rear panel connectors
1. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other
VGA-compatible devices.
3. USB 2.0 ports 5 and 6. These two 4-pin Universal Serial Bus (USB) ports are
available for connecting USB 2.0 devices.
4. Onboard Bluetooth module.
This onboard Bluetooth module allows wireless
connection and data transfer between your system and other Bluetooth devices.
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
ORANGE Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
LAN port
SPEED
LED
ACT/LINK
LED
6. Center/Subwoofer port (orange). This port connects to the center/subwoofer
speakers.
7. Rear Speaker Out port (black).
This port connects to the rear speakers in the
4, 6, and 8-channel audio congurations.
8. Line In port (light blue).
This port connects to the tape, CD, DVD player, or other
audio sources.
• Due to the limitations of the Bluetooth driver and the Windows
®
7 OS beta version,
some Bluetooth functions may not be supported in Windows
®
7 OS beta version, and
Windows
®
7 beta version may not recognize the onboard Bluetooth module.
• When Windows
®
7 OS is ofcially released, we will release an updated Bluetooth driver,
which will provide the complete Bluetooth functions. Download the latest Bluetooth
driver from the ASUS support wedsite at http://support.asus.com.
5. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN)
through a network hub. Refer to the table below for the LAN port LED indications.
LAN port LED indications
