ASUS P5LD2 SE 3-1
3.1 Starting up for the rst time
1. After making all the connections, replace the system case cover.
2. Make sure that all switches are off.
3. Connect the power cord to the power connector at the back of the
system chassis.
4. Connect the power cord to a power outlet that is equipped with a
surge protector.
5. Turn on the devices in the following order:
a. Monitor
b. External SCSI devices (starting with the last device on the chain)
c. System power
6. After applying power, the system power LED on the system front
panel case lights up. For systems with ATX power supplies, the system
LED lights up when you press the ATX power button. If your monitor
complies with “green” standards or if it has a “power standby”
feature, the monitor LED may light up or switch between orange and
green after the system LED turns on.
The system then runs the Power-On Self-Test (POST). While the tests
are running, the BIOS beeps (see BIOS beep codes table below) or
additional messages appear on the screen. If you do not see anything
within 30 seconds from the time you turned on the power, the system
may have failed a power-on test. Check the jumper settings and
connections or call your retailer for assistance.

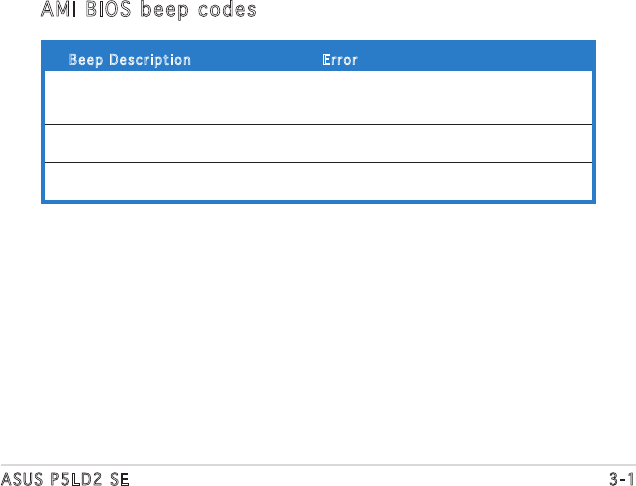

AMI BIOS beep codes
Beep Description Error
One beep Keyboard controller error
Refresh Time error
No master drive detected
Two continuous beeps followed by Floppy controller failure
two short beeps
Two continuous beeps followed by Hardware component failure
four short beeps
7. At power on, hold down the <Del> key to enter the BIOS Setup. Follow
the instructions in Chapter 4.
