PS-24 Mains Power Adaptor
Important!
•Warning - high voltage. Read through the instructions before starting the installation. The electrical connection
should be made by an authorized electrician. Please observe relevant national and local regulations for the
installation.
•AXIS PS-24 is designed to be part of an IT power system. Ground is not connected internally in the power
supply.
Cables
AXIS PS-24 Specifications
Power cable (not supplied) (6) AC Input connector Copper cables: AWG 16-18 or 1.5mm
2
Input cables (not supplied) (2) Terminal connectors AWG 16-28 or 1.5mm
2
cables
AC Input: 100-120VAC / 220-240VAC, max 800mA / 400mA, 80VA
AC Output: 24VAC, max 63VA
Voltage selector switch
(115V/230V)
Terminal connectors
Outer ring
Power switch
Terminal connectors
(From camera)
(To camera)
Cable gland

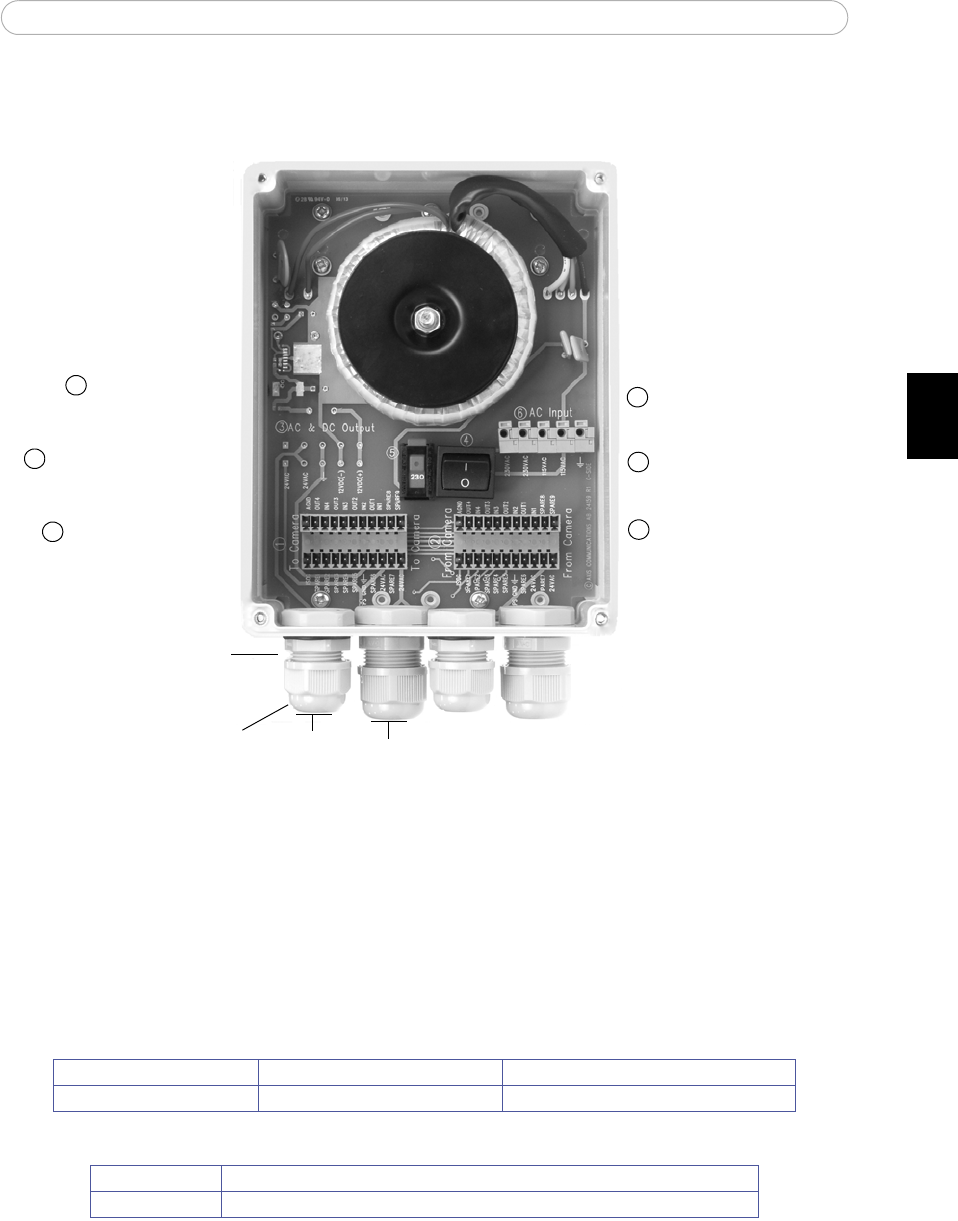

The outdoor power supply contains two sets of terminal connectors to provide easy wiring for alarm inputs/outputs
AC & DC Output
AC Input
1
2
3
4
5
6
(not used)
ON(1) OFF(0)
230VAC/115VAC
10-14mm
6-12mm
