User Manual MFGD 3420 10
3 Route the cable so that it enters the connector compartment at the
place where the cover is bulged.
To connect the power:
1 Connect the output of the 12V DC power supply to the DC input (6)
of the display.
2 Connect one end of the proper power cable to the AC input of the
12V DC power supply.
3 Connect the other end of the power cord to a grounded power
outlet.
2.5. Routing the signal cables
After connecting all cables, fix them in the cable tie at the rear of the
connector compartment. You can also bind the cables together by
means of the 2 velcro strips included in the package.
After fixing the cables, put the connector compartment cover back in
place. Pay attention that the signal cables are positioned under the
bulge in the cover.
Next, fix the cables in the plastic clamps on the foot. At last, put the
foot cover back in place.
To put the foot cover in place:
1 Push the upper side of the cover onto the foot, so that the hooks
on the cover are positioned right under the holes in the foot.
2 Slide the cover upward while moving the lower side of the cover
towards the foot.

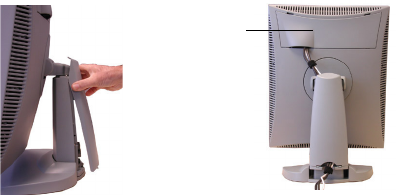

Push the upper side of
the cover onto the foot
Signal cables routed under foot
cover and bound by velcro strips
Connector
compartment
3 Press the cover to the foot so that both clips make a clicking
sound.
