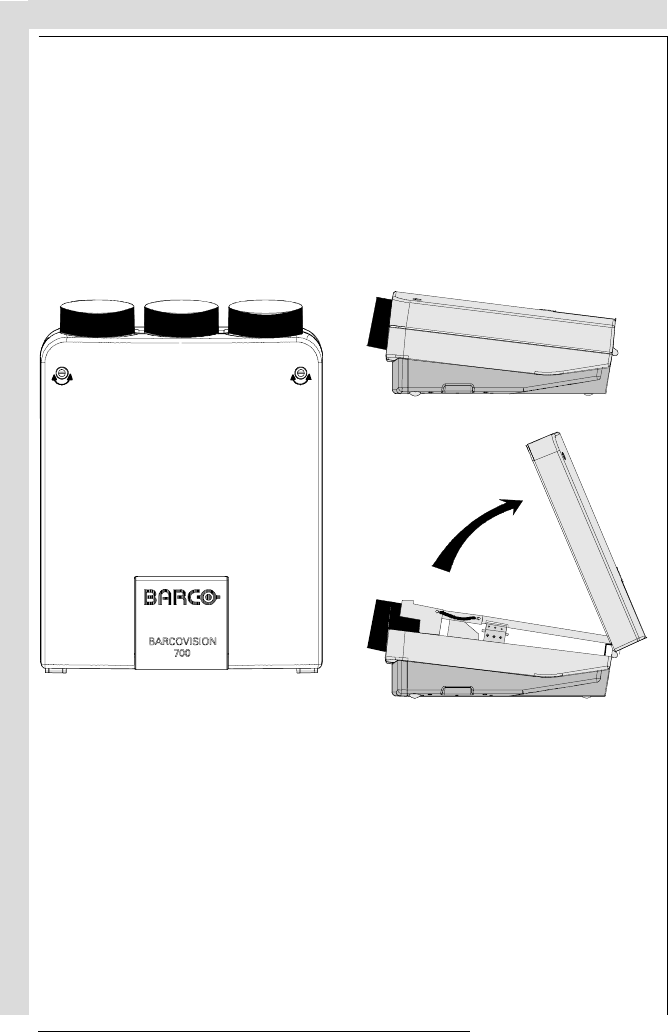

LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS
LOCATION AND FUNCTION OF CONTROLS
R5975059A BARCOVISION 708 200498
R5975059A BARCOVISION 708 200498
2-6
2-6
Back light key : when activated, all keys will be lit up and visible in the
dark.
ADJ. : adjust key, to enter or exit the adjustment mode.
Address key (sunk key), to enter the address of the projector (between
0 and 9). Press the address key, followed by pressing one digit button
between 0 and 9.
STBY : stand by button : - to initiate remote power up operation
- to stop projection without main power off.
Pause :to blank the image, press PAUSE. The image disappears but full
power is retained for immediate restarting.
Digit buttons : direct input selection.
Picture controls : use these buttons to obtain the desired level (see also
'Controlling') for each picture function.
TEXT : when adjusting one of the image controls during a meeting, the
displayed bar scale can be removed by pressing 'TEXT' key first. To re-
display the bar scale on the screen, press 'TEXT' key again. 'TEXT' key
is only active in operational mode. When 'TEXT' is off, no warning message
will be displayed.
ENTER : to start up the adjustment mode or to confirm an adjustment or
selection in the adjustment mode.
EXIT : to leave the adjustment mode or to scroll upwards when in the
adjustment mode.
Control disc : to make menu selections when in the adjustment mode.
Also allows to increment or decrement an adjustment in the adjustment
mode.
control disc up = up arrow in the menus
control disc down = down arrow in the menus
control disc to the right = arrow to the right on the menus
control disc to the left = arrow to the left on the menus
RC operating indication : lights up when a button on the remote control
is pressed. (This is a visual indicator to check the operation of the remote
control)
1
2
3
4
5
6
7
8
9
10
12
11
Back light key : when activated, all keys will be lit up and visible in the
dark.
ADJ. : adjust key, to enter or exit the adjustment mode.
Address key (sunk key), to enter the address of the projector (between
0 and 9). Press the address key, followed by pressing one digit button
between 0 and 9.
STBY : stand by button : - to initiate remote power up operation
- to stop projection without main power off.
Pause :to blank the image, press PAUSE. The image disappears but full
power is retained for immediate restarting.
Digit buttons : direct input selection.
Picture controls : use these buttons to obtain the desired level (see also
'Controlling') for each picture function.
TEXT : when adjusting one of the image controls during a meeting, the
displayed bar scale can be removed by pressing 'TEXT' key first. To re-
display the bar scale on the screen, press 'TEXT' key again. 'TEXT' key
is only active in operational mode. When 'TEXT' is off, no warning message
will be displayed.
ENTER : to start up the adjustment mode or to confirm an adjustment or
selection in the adjustment mode.
EXIT : to leave the adjustment mode or to scroll upwards when in the
adjustment mode.
Control disc : to make menu selections when in the adjustment mode.
Also allows to increment or decrement an adjustment in the adjustment
mode.
control disc up = up arrow in the menus
control disc down = down arrow in the menus
control disc to the right = arrow to the right on the menus
control disc to the left = arrow to the left on the menus
RC operating indication : lights up when a button on the remote control
is pressed. (This is a visual indicator to check the operation of the remote
control)
1
2
3
4
5
6
7
8
9
10
12
11
