3. Replacement procedure in case of an iQ Projector
2. Push the lamp inwards and turn the lamp locking handle over to lock the lamp (image 3-13)
3. Connect the lamp (image 3-14)

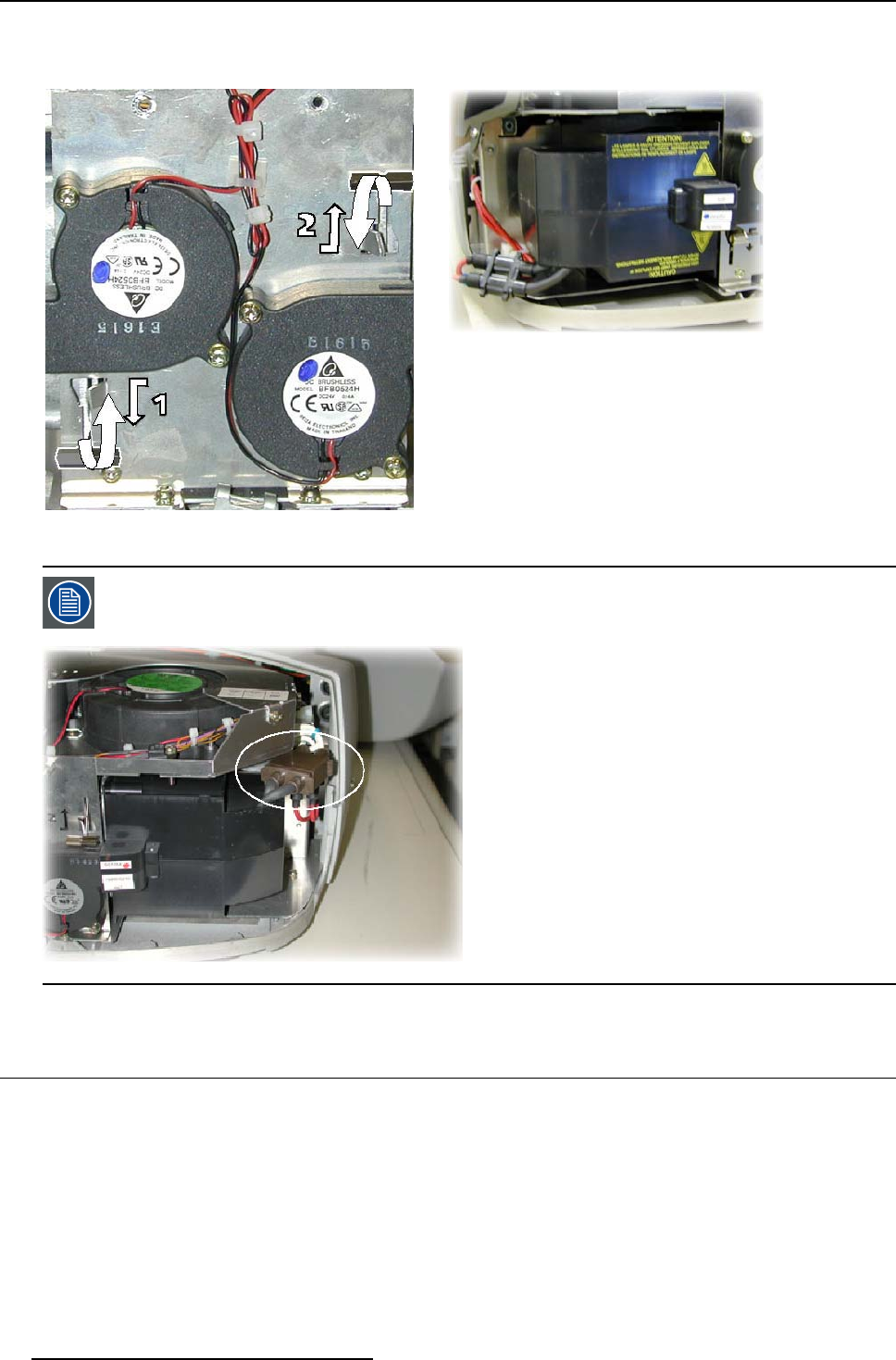

Image 3-13
locking lamp 1 & lamp 2
Image 3-14
Lamp connected
The new 120W lamp driver (B4006511K) has a different connector, therefore an adapting connector is used on
the 120W
lamp unit.
Image 3-15
3.5 Mounting the cover.
Mounting the back cover
1. Replace the back cover.
2. Turn with a screwdriver the cover lock screw a quarter turn clockwise to lock the cover. (image 3-16)
