— 15 —
ENGLISH
61
1
2
3
4
5
6
FG
DRAWER 1
DRSW
VDR
DRAWER 2
GND
CAUTION
• Do not connect any other device than the specified drawer (Solenoid) to the drawer kick-out
connector. (Do not connect a telephone line either.)
1 Turn off the power of the printer.
2 Orient the drawer kick-out cable connector
correctly, insert it into the drawer kick-out
connector on the back of the printer.
3 Fasten the ground wire to the ground
connector on the printer with a screw.

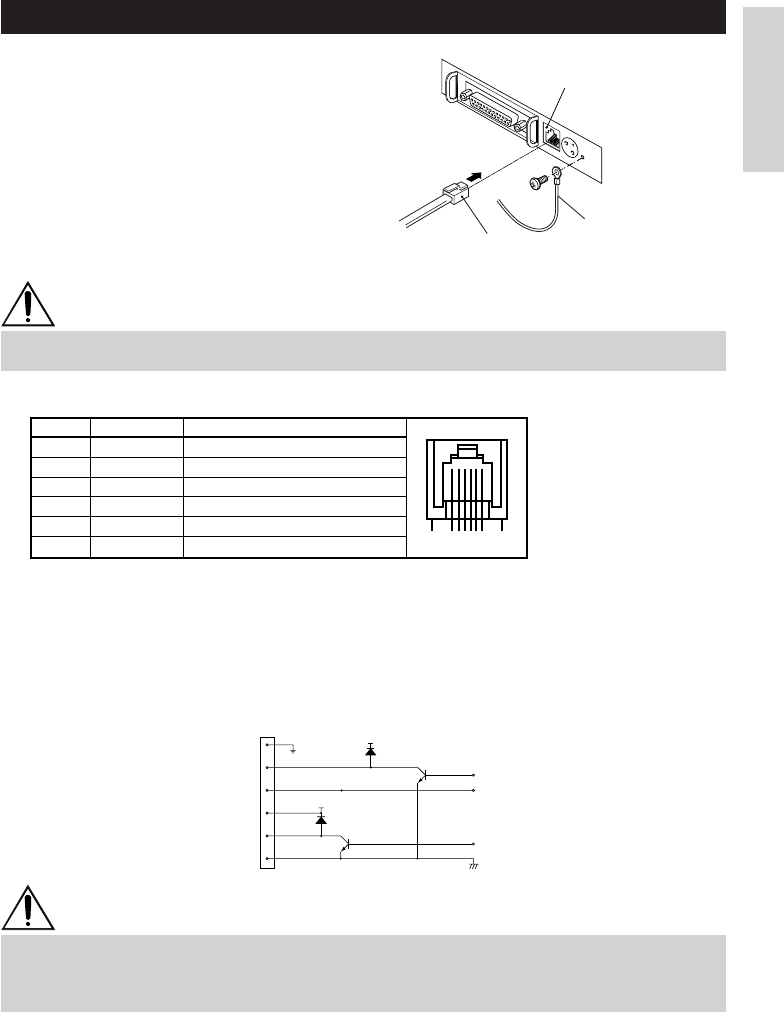

3.3 Connecting the Drawer Kick-Out Connector
Drawer kick-out connector
Ground wire
Drawer kick-out cable
connector
Connector used:
TM5RJ3-66 (Hirose) or
equivalent
Applicable connector:
TM3P-66P (Hirose) or
equivalent
CAUTION
• No output is produced while printing.
• The drawers 1 and 2 cannot be driven simultaneously.
• A solenoid used for the drawer should be of 24 Ω or more. The output current should be
kept at 1 A or less; otherwise, breakdown or burning could occur.
(2) Electrical characteristics
1) Driving voltage: 24 VDC
2) Driving current: Approx. 1 A max. (shall not exceed 510 ms.)
3) DRSW signal: Signal levels: “L”=0 to 0.5 V, “H”=3 to 5 V
(3) DRSW signal
DRSW signal status can be tested with the DLE+EOT, GS+a, or GS+r command or at pin 34
on the parallel interface port.
(4) Drive Circuit
(1) Connector Pin Configuration
VDR
1
2
3
4
5
6
VDR
Function
Frame Ground
Drawer 1 drive signal
Drawer switch input
Drawer drive power supply
Drawer 2 drive signal
Common ground on circuits
No. Signal
