4.

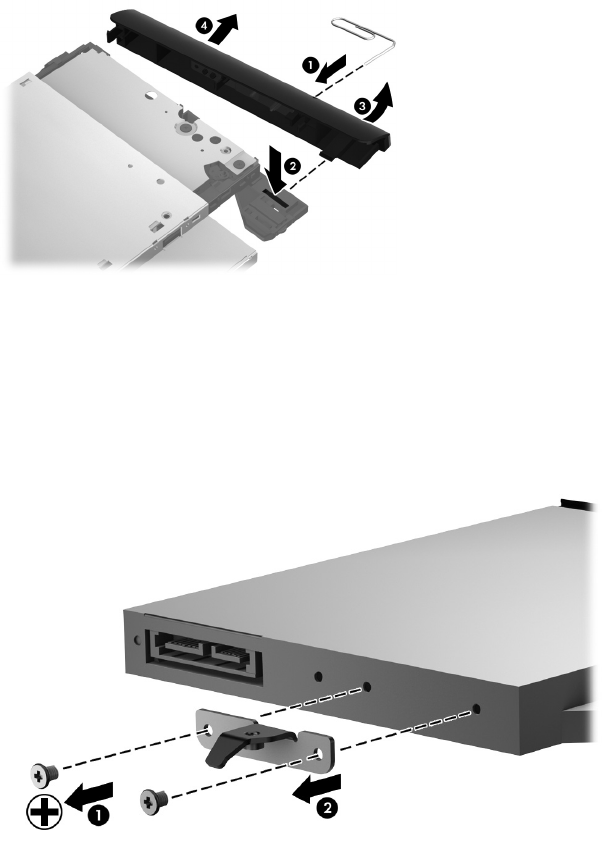

If it is necessary to replace the optical drive bezel, use a thin tool or an unbent paper clip (1) to
release the optical drive tray.
5. Use a flat-blade screw driver or similar tool to press on the optical drive bezel tab (2) to release
the optical drive bezel.
6. Release the left side of the optical drive bezel (3).
7. Remove the optical drive bezel (4).
8. If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel
toward you.
9. Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the
optical drive.
10.
Remove the optical drive bracket (2).
Reverse this procedure to install the optical drive.
44 Chapter 4 Removal and replacement procedures
