7.

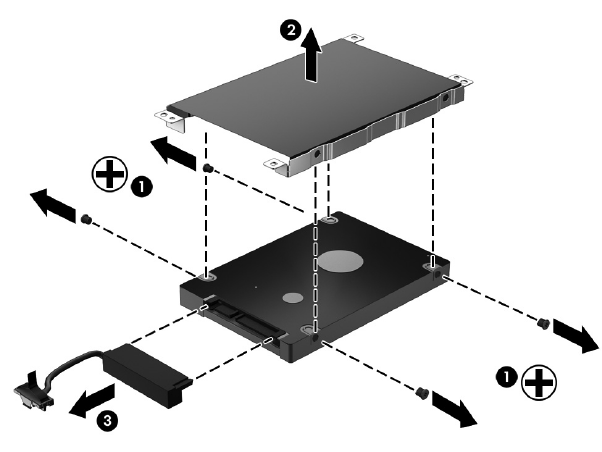

If it is necessary to disassemble the hard drive, perform the following steps:
a. Remove the four Phillips PM3.0×3.0 screws (1) that secure the hard drive bracket to the
hard drive.
b. Remove the hard drive bracket (2) from the hard drive.
c. Disconnect the hard drive connector cable (3) from the hard drive. The hard drive bracket,
hard drive connector cable, and screws are available in the Hard Drive Hardware Kit, spare
part number 686261-001.
Reverse this procedure to reassemble and install the hard drive.
