7.
If it is necessary to replace the display panel:

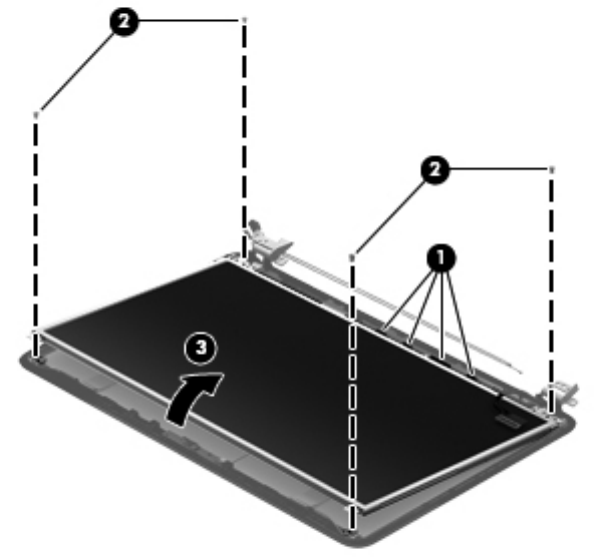

a. Release the display panel cable (1) from the clips built into the bottom edge of the
display enclosure.
b. Remove the four Phillips PM2.5×4.0 screws (2) that secure the display panel to the
display enclosure.
c. Lift the top edge of the display panel (3), and then swing it up and forward until it rests
upside down in front of the display enclosure.
d. Release the adhesive support strip (1) that secures the display panel cable to the
display panel.
e. Detach the display panel cable (2) from the display panel. (The display panel cable is
attached to the display panel with double-sided tape.)
Component replacement procedures
71
