Installation 2-15
Attaching Front Top Bezel
1. Attach the connectors for the Front Panel to the Electronics Module
receptacles (1).
2. Lift the bezel into place (2).

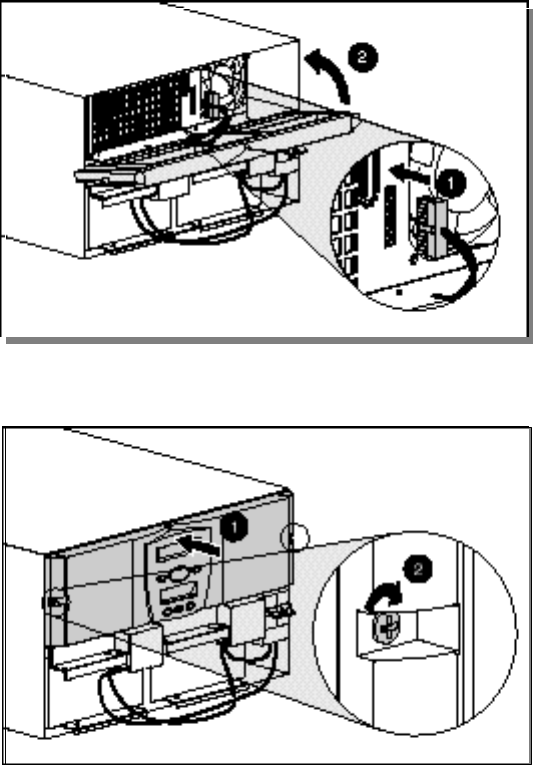

Figure 2-12. Attaching the top front bezel
3. Secure the bezel to the chassis using the captive screws on each side.
Figure 2-13. Securing the top front bezel to the chassis
NOTE: Leave lower bezel off until wiring and installation is complete.
