2-18 Compaq R6000 Series UPS Operation and Reference Guide
Installing and Connecting Communication Options
Option boards for the Compaq R6000 UPS include the Compaq Multi-Server
UPS Card, the Compaq Scalable UPS Card, and the Compaq SNMP-EN
Adapter. When using any of the Compaq option boards to expand the
capabilities of the Compaq R6000 UPS, install the options using the
instructions included with those kits.
See “Considerations” at the beginning of this guide for more information on
the options available for the Compaq R6000 UPS.
Connecting Loads
Load Segments Description
The Compaq R6000 UPS has five available load segments that can be
individually assigned. The numbered segments each have three receptacles.
The five load segments have their own circuit breakers and are used by the
software to order graceful shutdown and power-up of your network
components.

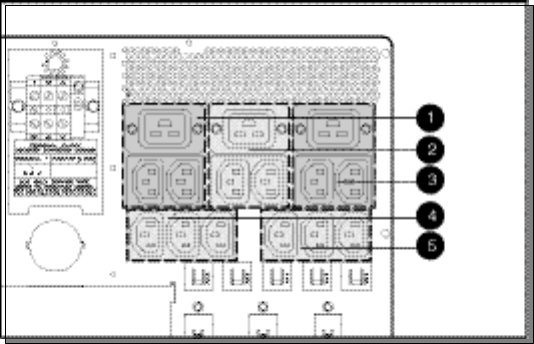

Figure 2-15. Rear panel, showing numbered load segments
1
1 IEC 320 C20, 2 IEC 320 C14
2
1 IEC 320 C20, 2 IEC 320 C14
3
1 IEC 320 C20, 2 IEC 320 C14
4
5
3 IEC 320 C14
3 IEC 320 C14
