3-2 Compaq R6000 Series UPS Operation and Reference Guide
Front Panel Controls
The front panel controls and LCD display provide an easy-to-use UPS
interface for setup, load control, and status monitoring. The front panel
features six button controls.

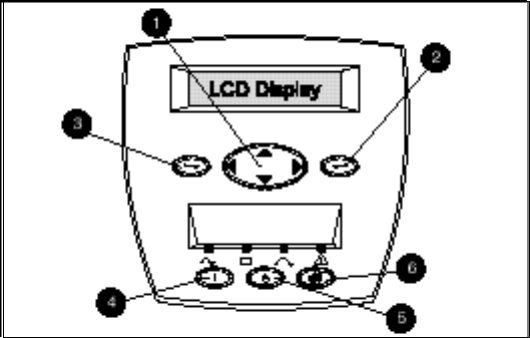

Figure 3-1 The Front Panel Controls
Control Name Function
1
Center Large 4-way rocking button; used to control
navigation through LCD menu structure:
UP, DOWN, LEFT and RIGHT.
2
Enter Used to navigate and select options in the
LCD menu structure
3
Escape Used to navigate and deselect options in the
LCD menu structure
4
ON Used to control status
5
STANDBY Used to control status
6
TEST/RESET
ALARM
Used to control functions
