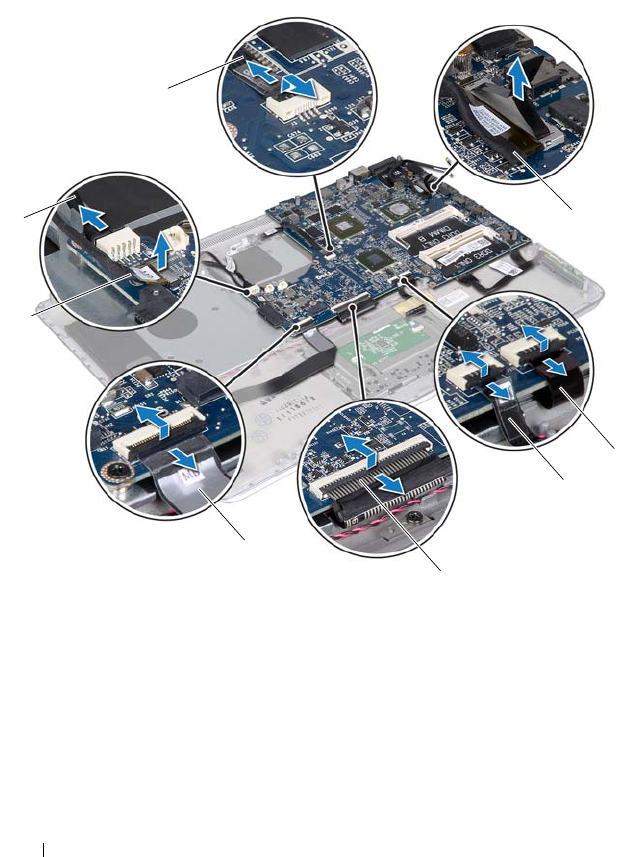

Disconnect the audio-board cable, keyboard cable, touch-pad cable,
keyboard back-light cable, display cable, power-button board cable, AC-
adapter connector cable, and camera cable from the connectors on the
system board.
7
1
2
3
4
5
6
8
