92 Camera Module
Replacing the Camera Module
1
Follow the instructions in "Before You Begin" on page 9.
2
Connect the camera cable to the connector on the camera module.
3
Use the alignment posts to place the camera module on the display back
cover.
4
Replace the display panel (see "Replacing the Display Panel" on page 87).
5
Replace the display bezel (see "Replacing the Display Bezel" on page 85).
6
Follow the instructions from step 2 to step 12 in Replacing the System
Board.
7
Replace the display assembly (see "Replacing the Display Assembly" on
page 82).
8
Replace the battery (see "Replacing the Battery" on page 18).
9
Replace the base cover (see "Replacing the Base Cover" on page 15).

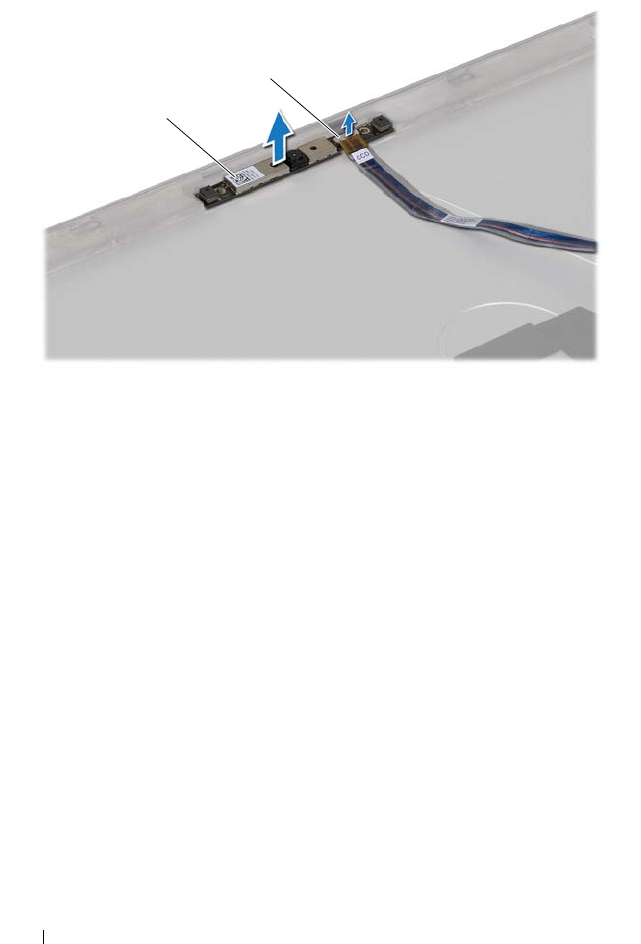

1 camera module 2 camera-cable connector
