Installation
This section describes information for connecting and wiring the FOX T USW 103. Topics in
this section include:
• Mounting the FOX T USW 103
• Rear Panel Features
• Making Connections
Mounting the FOX T USW 103
The FOX T USW 103 can be mounted in a rack, under a desk, or on a tabletop (see
Mounting on page 38 for more mounting details).
Rear Panel Features
FOX T USW 103
RS-232CONTACT
RS-232
OVER FIBER
AUDIO
HDMIHDMIRGB/R-Y, Y, B-Y
ALARM
REMOTE
Tx Rx
Tx Rx
OPTICAL
INPUTS
1
POWER
12V
0.7 A MAX
23
LINK
LINK
GT
xRxG12 123G
a b c
d
e f gh

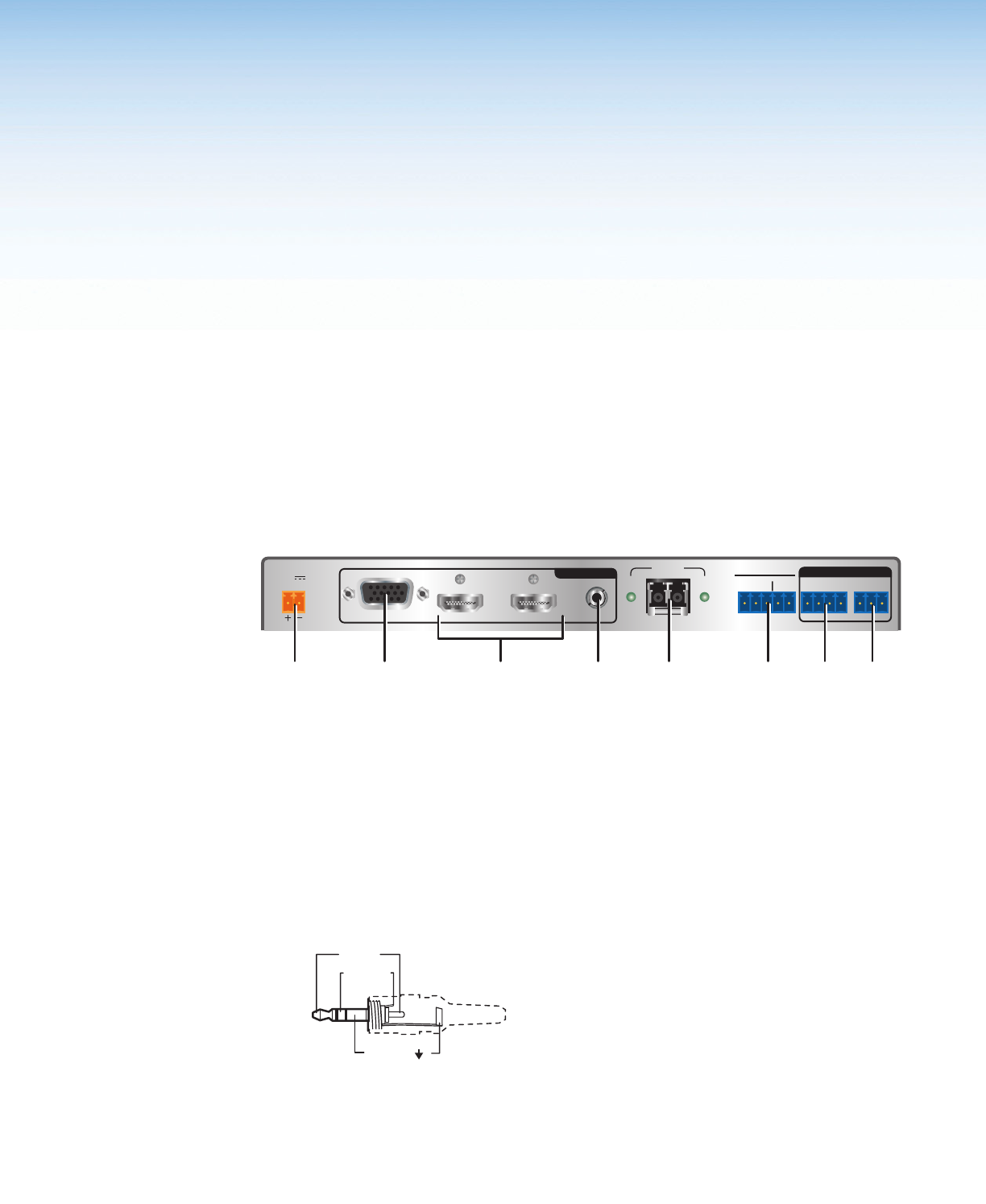

Figure 2. FOX T USW 103 Rear Panel Features
Input Connectors
a
Analog video connector — Connect a video source to the female 15 HD connector,
labeled input 1.
b
HDMI connectors — Connect a source device to either or both HDMI connectors,
labeled inputs 2 and 3 (see Connecting HDMI Connectors on page 6). They can
accept HDMI, DVI, or dual mode DisplayPort video sources.
c
Audio connector — Connect an analog audio source to the 3.5 mm TRS jack. All
three video inputs can share this audio input.
Tip (+)
Sleeve ( )
Sleeve ( )
Ring (
-
)
Tip (+)
Audio Plugs.eps
RCA Connector
3.5 mm Stereo Plug Connector
(balanced)
Sleeve ( )
Ring (R)
Tip (L)
3.5 mm Stereo Plug Connector
(unbalanced)
Figure 3. Wiring for Unbalanced Stereo Audio
4FOX T USW 103 Universal Switcher • Installation
