Export EDID panel
EDID files on the FOX T USW 103 can be exported to the connected PC. To open and view
them, use the Extron EDID Manager software, available at www.extron.com.
The EDID Manager software aids in troubleshooting any EDID related issues that may occur
during configuration or operation of an AV system.

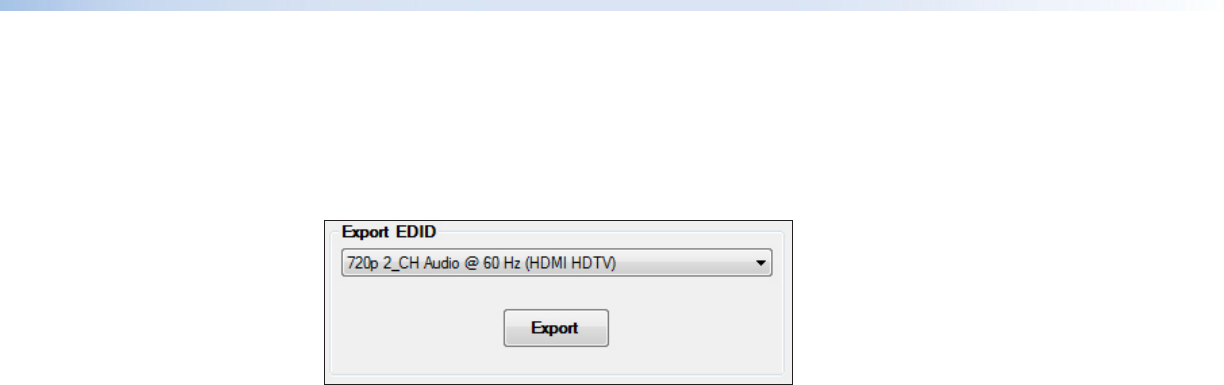

Figure 34. Export EDID Panel
1. In the Export EDID panel, select the desired EDID to export from the drop-down list.
2. Click the Export button. The Save As dialog box opens.
3. Select the export destination and file name for the EDID.
4. Click the Save button. The EDID setting is exported.
FOX T USW 103 Universal Switcher • FOX Extender Control Program 36
