HandyTone-386 User Manual Grandstream Networks, Inc.
4
2 Installation
HandyTone-386 Analog Telephone Adaptor is an all-in-one VoIP integrated device designed to be a
total solution for networks providing VoIP services.
The HandyTone-386 VoIP functionalities are available via regular analog telephones.

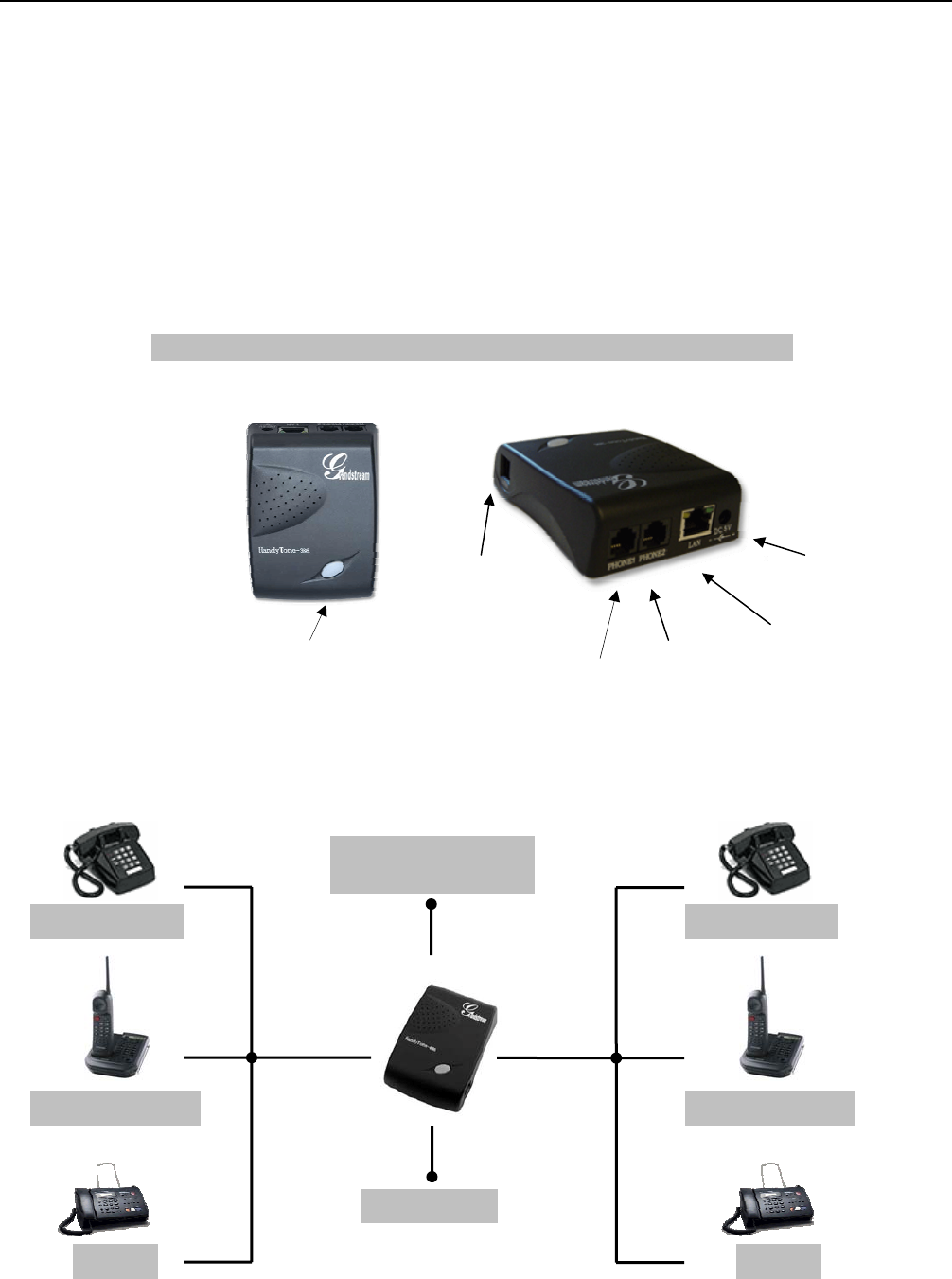

The following photo illustrates the appearance of a HandyTone-386.
Top View Side Views
Interconnection Diagram of the HandyTone-386:
Button
Red/Green LED
RJ45
10M Ethernet
WAN
RJ11
FXS Port
(Phone/Fax)
+5V/1200mA
RJ11
Line Port
(Line )
Fax
Cordless Phone
Analog Phone
Internet ADSL/Cable
Modem Ethernet
Phone Line
LINE
WAN
FXS 1
FXS 2
Analog Phone
Cordless Phone
Fax
RJ11
FXS Port
(Phone/Fax)
