2 System Features
Architectural View
Architectural View

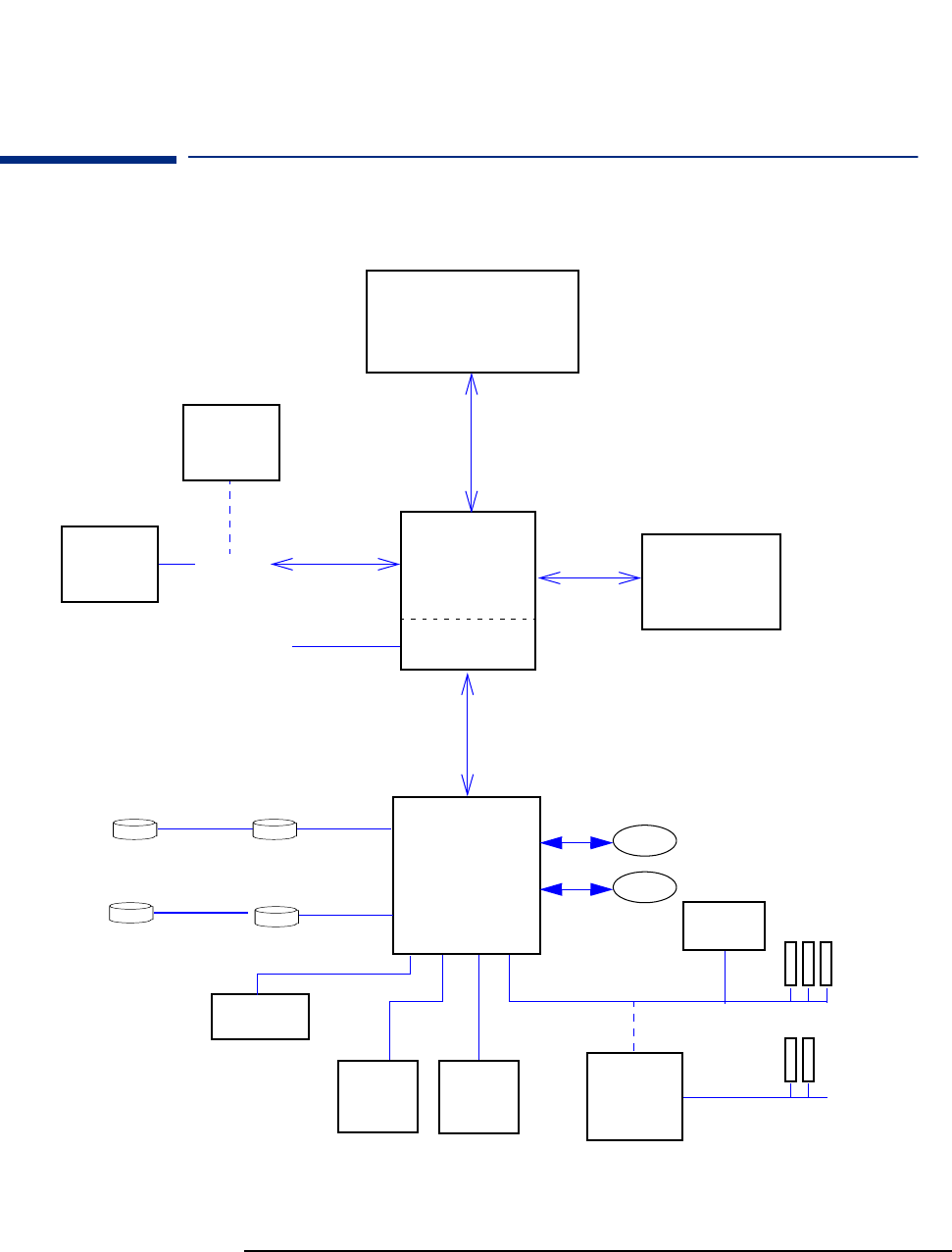

This block diagram applies primarily to Desktop and Minitower configurations.
ICH1 chip
Audio
CS4299
Processor
Celeron orPentium III
Intel 815
Main Memory
133MHz SDRAM
3 PCI Slots
2 ISA Slots
Memory Bus
Host Bus
AGP Bus
PCI Bus
ISA Bridge on
ISA extension
kit
Super I/O
Serial (2)/Parallel/FDD/PS2
Flash BIOS
Hard Disk
CD-ROM
2IDEDrives
DVD/CD-RW/Zip
Hard Disk
USB 1
USB2
2UATA66Disks
Integrated 815
graphics controller
AGP Slot
VGA Connector
AIMM graph-
ics memory
extension
AGP graphics
card
(some DT,
MT models)
3COM
3C320 LAN
