9 Remove the pick-up roller from the pick-up roller assy.
10 Remove the paper feed roller assy from the shaft.
11 Remove the paper feed roller rubber from the paper feed roller assy.
– When installing the paper feed roller rubber, be sure that the
painted mark is facing toward the gear.
Reintalling the pick-up roller/paper feed roller rubber
% Reinstall the above parts following the removal steps in reverse.

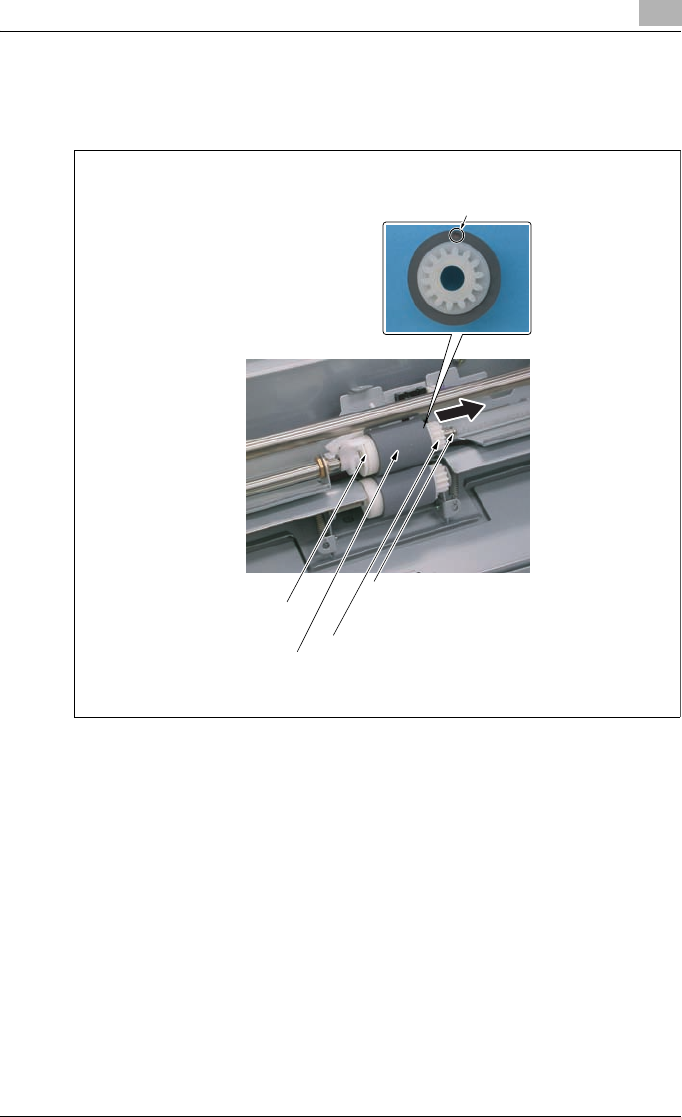

paper feed roller assy
shaft
paper feed roller rubber
gear
painted mark
