DF-609
4
bizhub PRO C6500 / bizhub PRO C6500e 4-5

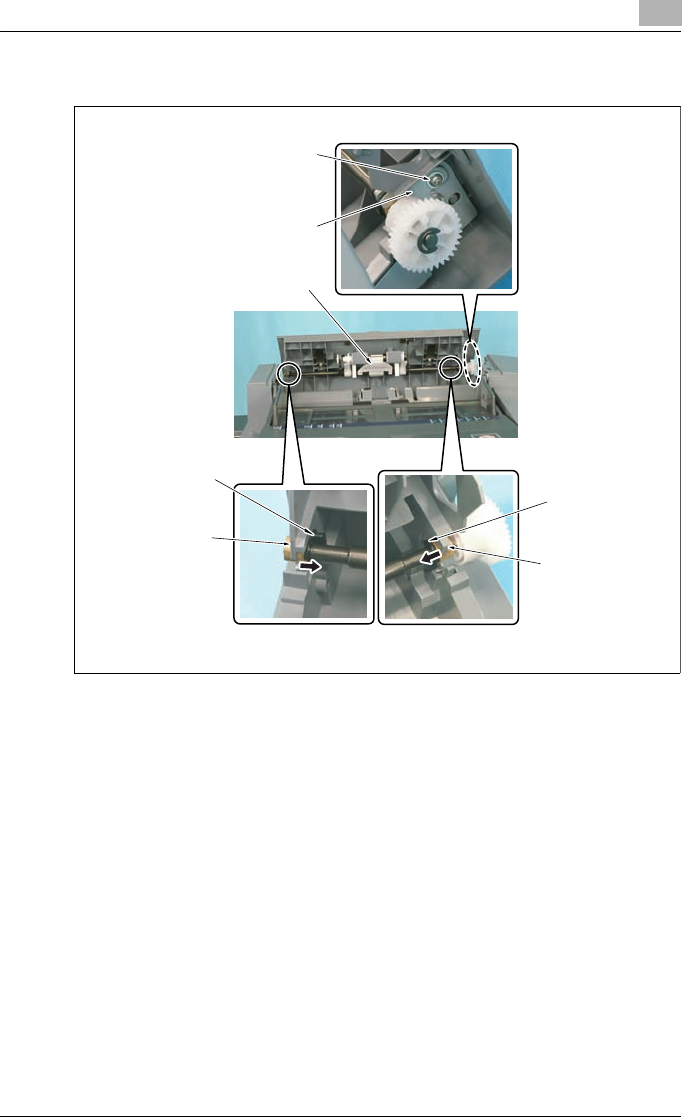

7 Remove the screw and remove the shaft securing plate.
8 Remove the two C-clips.
screw
shaft securing plate
C-clip
bearing
paper feed unit
C-clip
bearing
