DF-609
4
bizhub PRO C6500 / bizhub PRO C6500e 4-11

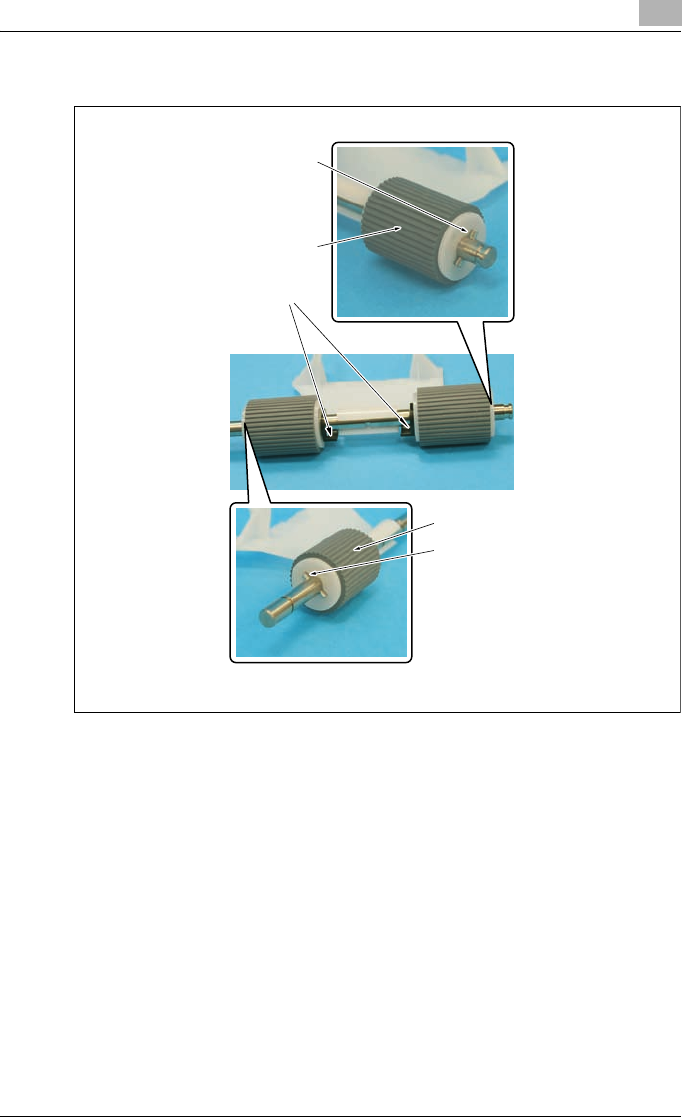

13 Remove the pin and remove the pick-up roller.
14 Remove the C-clip.
– Be careful not to lose the pin as it may drop off the shaft when
removing the C-clip.
15 Remove the pin and remove the pick-up roller.
Reinstalling the pick-up roller/paper feed roller
% Reinstall the above parts following the removal steps in reverse.
C-clip
pin
pick-up roller
pin
pick-up roller
