English

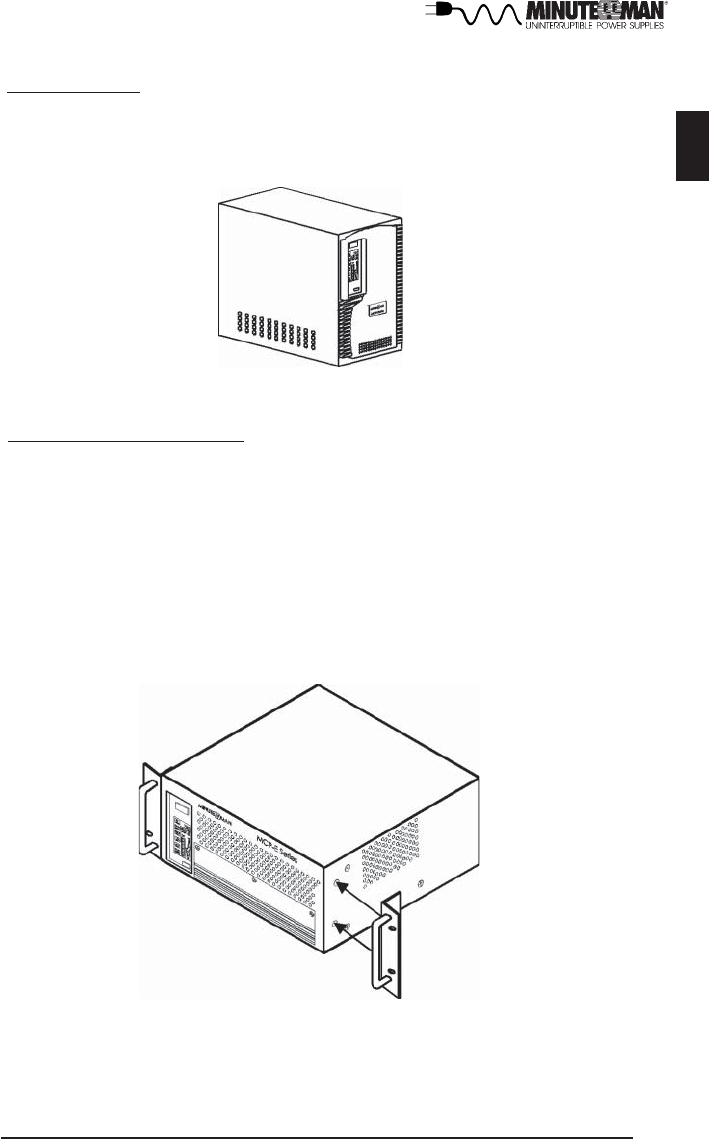

The Tower Model allows the user to install the UPS next to the tower computer. Use
CAUTION, the UPS is extremely heavy. Place the UPS in the final desired location and
complete the rest of the installation procedure. Now the UPS is ready for the normal start-up
procedure.
The Rackmount Configuration comes with mounting brackets for the standard 19"
(46.5cm) rack. The mounting brackets to fit a 23" (59.2cm) standard rack are also
available. The screws for mounting the UPS to the rack are not included (screw size
varies with rack size). The kit includes, two mounting brackets and four retaining screws.
Locate the mounting bracket screw holes on the side panels of the UPS, at the front of the
UPS. Align the mounting bracket with the mounting bracket screw holes. Attach the
mounting bracket with the retaining screws. WARNING: Use two or more people when
installing the UPS into the rack. Use caution, the UPS is extremely heavy. Do not move the
rack after the units have been installed. The rack may be unstable due to the weight
distribution. Now the UPS is ready for the normal start-up procedure.
The MCP-E Series UPS can be installed in two different configurations.
