Primary Power Switch: Press and release the
ON/OFF button to turn the unit ON or OFF.
Normal Mode Icon: This icon will illuminate
when the utility power is within safe operating
range.
Battery Mode Icon: This icon will illuminate
when the Utility power is outside safe operating
range and the unit is operating in the battery
mode.
Bypass Mode Icon: This icon will illuminate
when the unit is in bypass mode and you do not
have battery backup protection.
Unit Fault Icon: The Fault icon illuminates when
the UPS has detected an internal fault. (see
section 5)

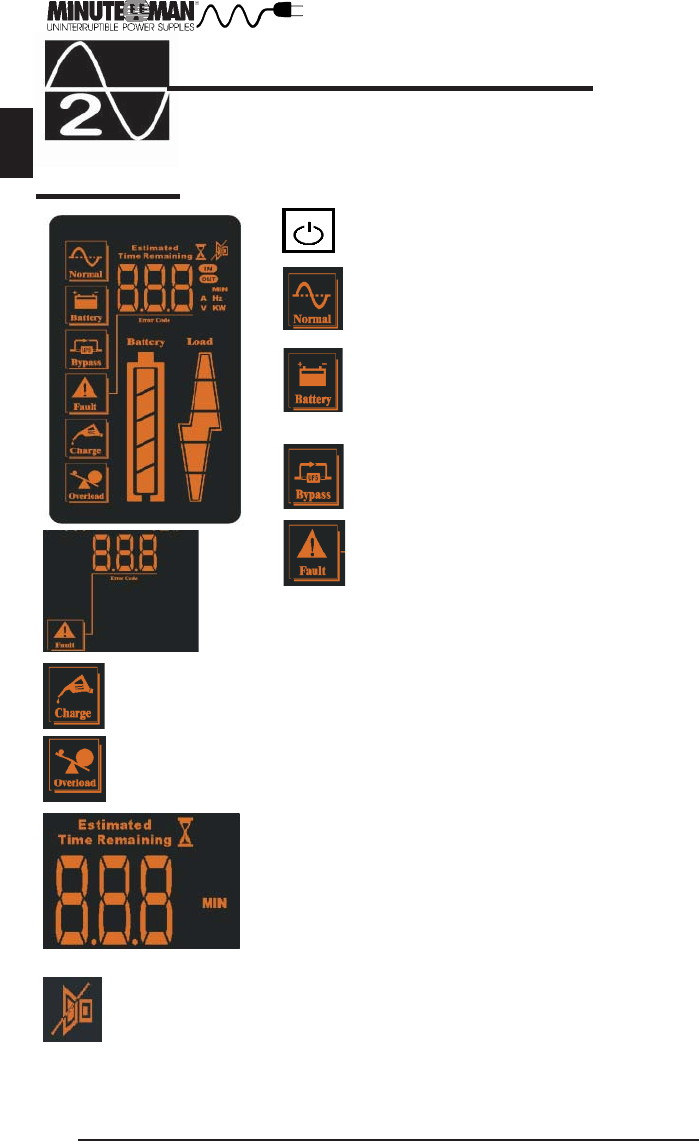

FRONT PANEL (LCD Units)
English
CONTROLS AND INDICATORS
Unit Fault Icon: This icon and error code will illuminate when
the self diagnostics are able to determine the problem.
Unit Charger Icon: This icon will illuminate when the unit is charging the batteries.
Unit Overload Icon: This icon will illuminate when the unit load has exceed the
rating of the UPS. The UPS will transfer to bypass mode if the overload is not
removed.
Estimated Time Remaining icons: These combination of LCD
icons will illuminate when selected and the UPS is operating
in the battery mode. The first time icon will appear as ">" if
the estimated time remaining is greater than ten (10) minutes.
This symbol will turn off when the estimated time remaining is
less than 10 minutes and the remaining time will appear in the
display.
Unit Audible Alarm Icon: This alarm will illuminate when audible alarm is
silenced.
