Chapter 1 – Introduction and Description
Multi-Tech Systems, Inc. RouteFinder SOHO RF820/RF820-AP & RF830/RF830-AP User Guide (S000399E) 8

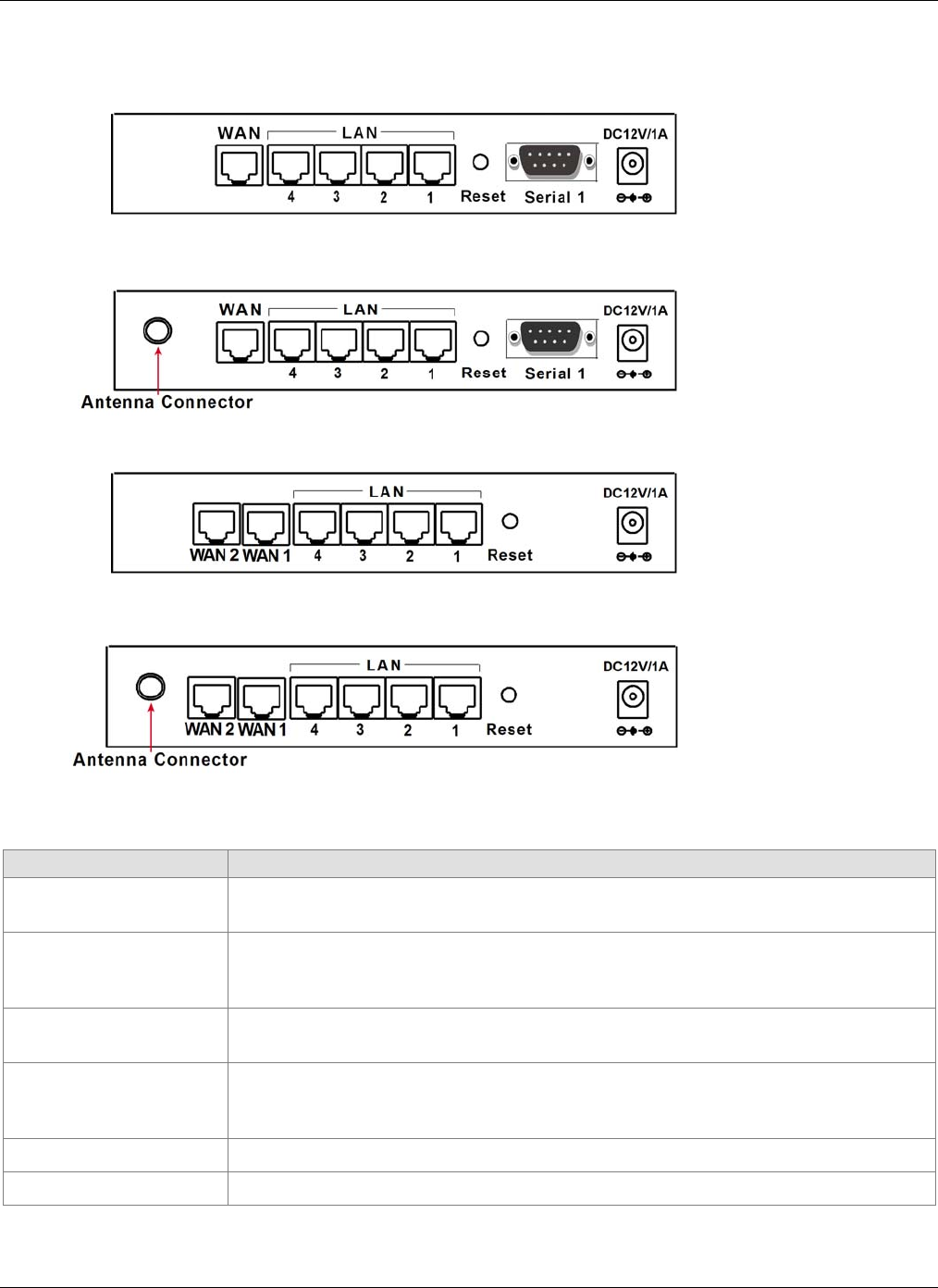

Back Panels
RF820
RF820-AP
RF830
RF830-AP
Connector Description
Antenna Connector
Connector for the 2.4 GHz 5dBi SWI-Reverse-F antenna.
Note: The antenna must be attached in order for the RouteFinder to be operational.
WAN
The WAN (10/100BaseT) port connects the DSL modem or cable modem.
The RF820 and 820-AP have one WAN port and the RF830 and RF830-AP have
two WAN ports.
LAN Ports
There are 4 LAN ports. You can connect to PCs, FTP servers, printers, or other
devices you want to put on your network.
Reset
The Reset button resets the RouteFinder to its factory defaults. Press and hold the
Reset button until the Status LED blinks, and then release it. Do not press this
button unless you want to restore all settings to the factory defaults.
Serial
(RF820 and RF820-AP only) The Serial port connects to a standard modem.
12VDC Power
The power port connects the AC power adapter.
