Appendix B Default Settings
VXI-USB User Manual B-2 ni.com

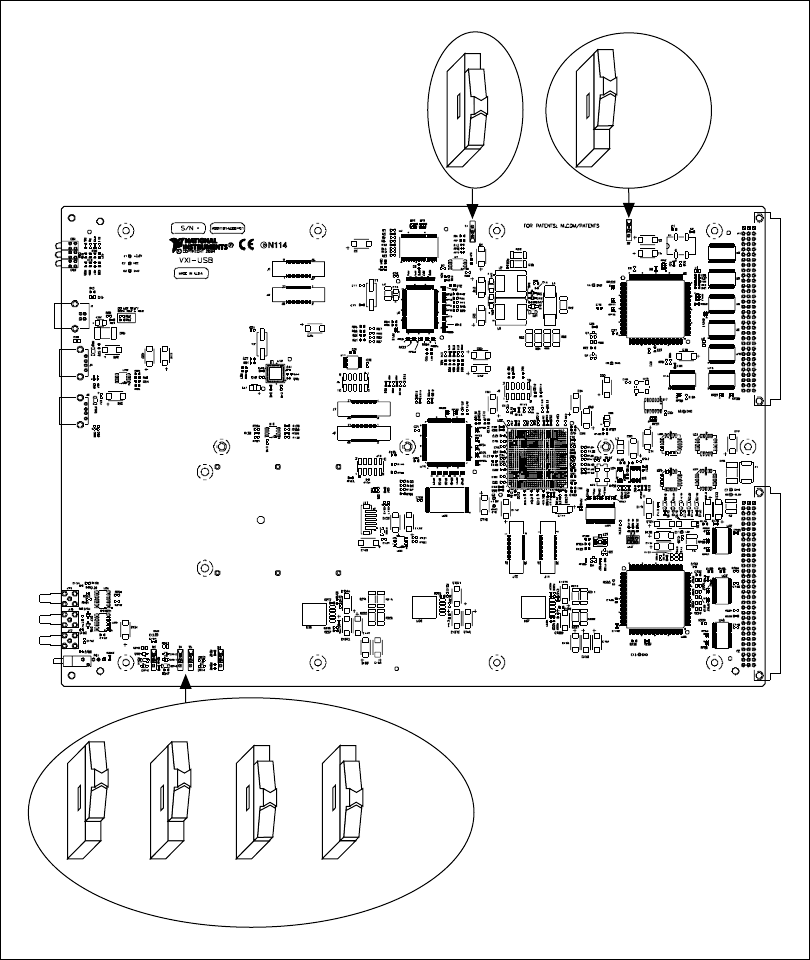

Figure B-1. VXI-USB Default Configuration Settings
S3
S4 S5 S6
S2
S1
Y
N
From
Onboard
Oscillator
From SMB
CLK10 In
ON
OFF
ON
OFF
OUT
IN
Inverted
Noninverted
