NEC LT170 Projector User Manual



E-40
APPENDIX

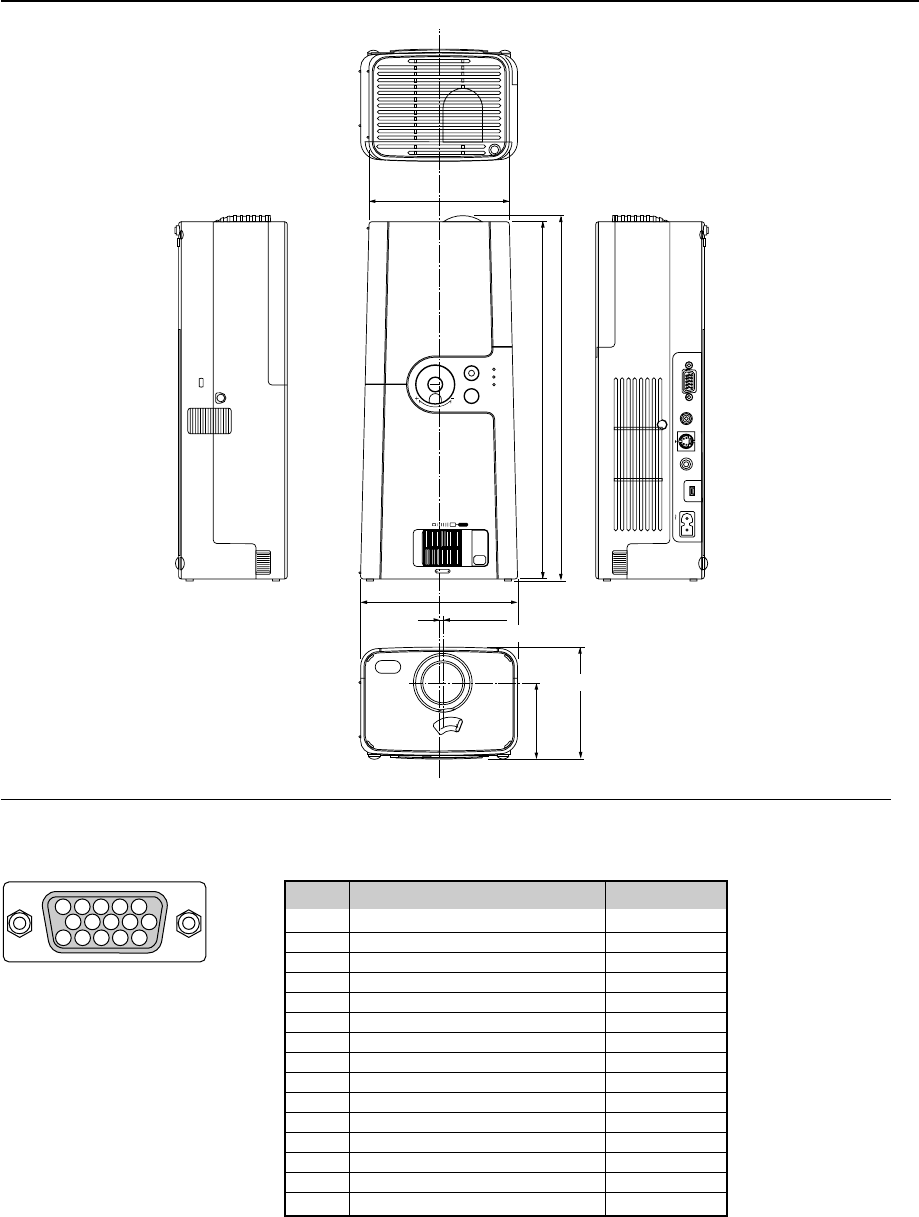

Cabinet Dimensions
Unit = mm (inch)
Mini D-Sub 15 Pin Connector
Pin Assignments of D-Sub COMPUTER Input Connector
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 Scart Sync
12 Bi-directional DATA (SDA)
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
51423
10
1112131415
6978
ZOOM
FOCUS
PUSH
LAMP
MENU
SOURCE
ENTER
STATUS
POWER
ON/STAND BY
S
E
L
E
C
T
COMPUTER
S-VIDEO IN
AUDIO IN
AC IN
VIDEO IN
C
L
O
S
E
280 (11.0")
88 (3.46")
60 (2.36")
110 (4.33")
123 (4.84")
2.8 (0.11")
286.5 (11.28")
Lens center
Lens center
