Configuring Your Wireless Network 23
:

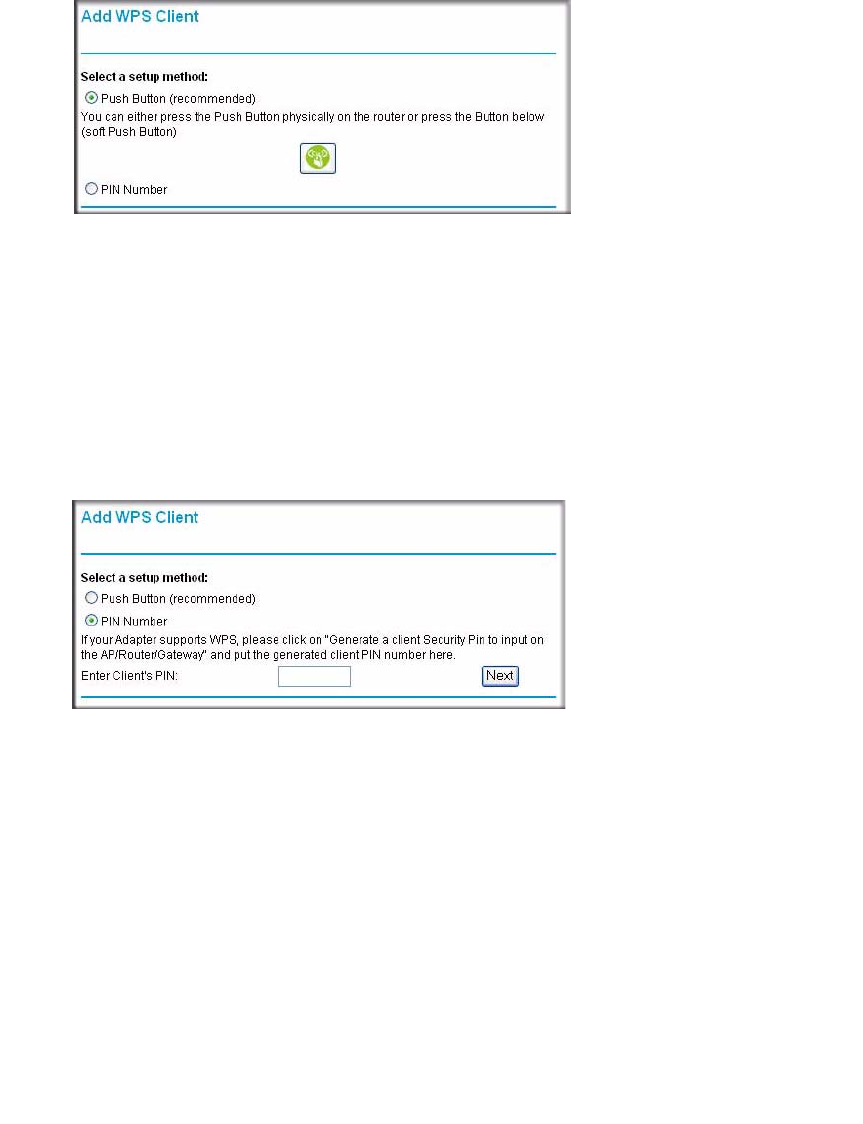

• Entering a PIN. If you want to use the PIN method, select the PIN radio box. A screen
similar to the one shown below displays.
– Go to your wireless client and, from the client’s WPS utility, obtain the wireless
client’s security PIN, or follow the client’s WPS utility instructions to generate a
security PIN.
– Then, enter this PIN in the Enter Client’s PIN field provided on the router and click
Next. You have 4 minutes to enable WPS on the router using this method.
Using either method, the client wireless device will attempt to detect the WPS signal from the
router and establish a wireless connection in the time alloted.
• If no connection is detected, then no SSID or security settings are configured on the router.
• If a connection is established, the router WPS screen displays a message confirming that
the wireless client was successfully added to the wireless network. (The router has
generated an SSID, implemented WPA/WPA2 wireless security (including a PSK security
password) on the router and has sent this configuration to the wireless client.)
4. Note the new SSID and WPA/WPA2 password for the wireless network.
Figure 14
Figure 15
