Reference Manual for the MR814v2 Cable/DSL Wireless Router
3-6 Wireless Configuration
Choosing Authentication and Security Encryption Methods

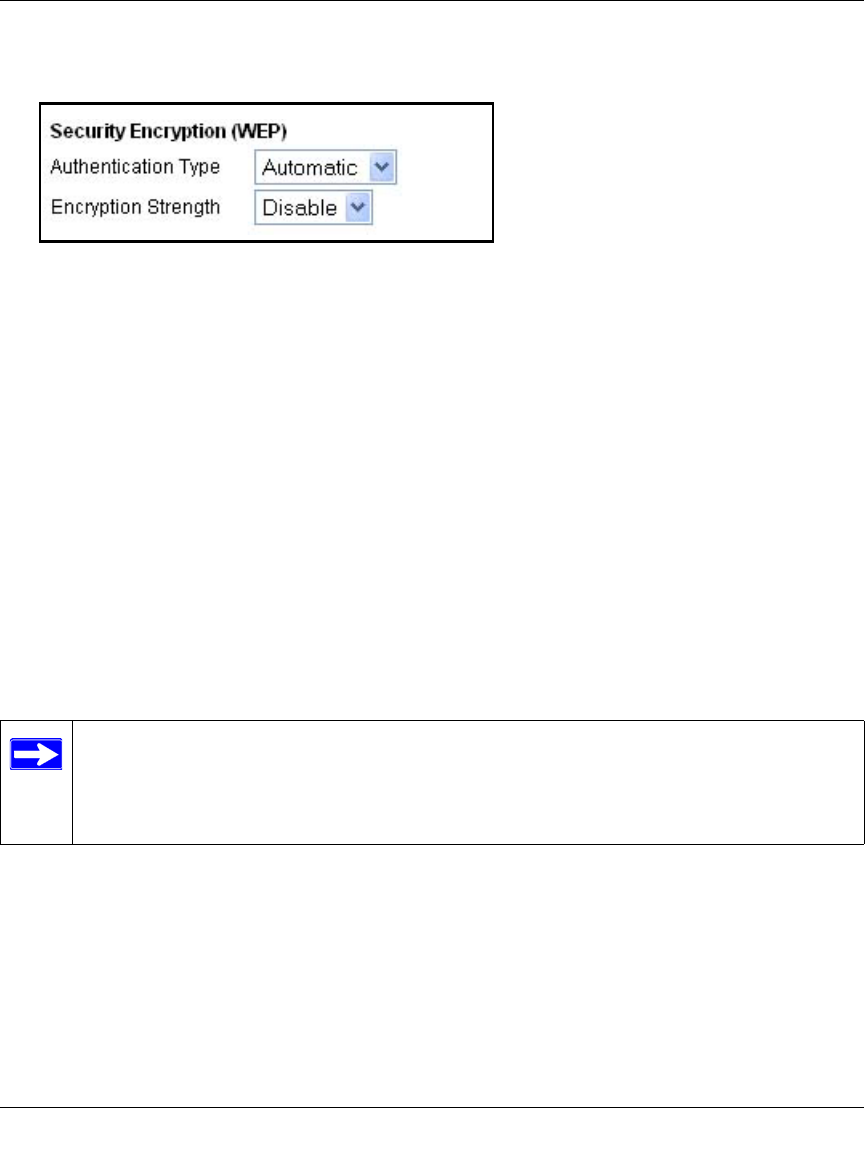

Figure 3-7: Encryption Strength
Restricting wireless access to your network prevents intruders from connecting to your network.
However, the wireless data transmissions are still vulnerable to snooping. Using the WEB data
encryption settings described below will prevent a determined intruder from eavesdropping on
your wireless data communications. Also, if you are using the Internet for such activities as
purchases or banking, those Internet sites use another level of highly secure encryption called SSL.
You can tell if a web site is using SSL because the web address begins with HTTPS rather than
HTTP.
Authentication Scheme Selection
The MR814v2 lets you select the following wireless authentication schemes.
• Automatic.
• Open System.
• Shared key.
Set your wireless adapter according to the authentication scheme you choose for the MR814v2
router. Please refer to
“Authentication and WEP” on page D-3 for a full explanation of each of
these options, as defined by the IEEE 802.11b wireless communication standard.
Encryption Strength Choices
Choose the encryption strength from the drop-down list. Please refer to “Overview of WEP
Parameters” on page D-5 for a full explanation of each of these options, as defined by the IEEE
802.11b wireless communication standard.
Note: The authentication scheme is separate from the data encryption. You can
choose an authentication scheme which requires a shared key but still leave the
data transmissions unencrypted. If you require strong security, use both the
Shared Key and WEP encryption settings
.
