Olitec RW400SG Network Router User Manual



In this page, you can configure the following wireless parameters:
¾ Wireless Radio - indicates whether the Access Point feature of the router is
enabled or disabled. If disabled, the WLAN LED on the front panel will not be lit and
the wireless stations will not be able to access the router. If enabled, the WLAN
LED will be lit up and wireless stations will be able to access the router.
¾ SSID - Enter a value of up to 32 characters. The same SSID must be assigned to
all wireless devices on your network. The default SSID is default. This value is
case-sensitive. For example, default is NOT the same as DEFAULT.
¾ Region - Select your region from the pull-down list. This field specifies the region where
the wireless function of the router can be used. It may be illegal to use the wireless
function of the router in a region other than one of those specified in this filed.
¾ Channel - the current channel in use. This field determines which operating
frequency will be used.
¾ Mode - Indicates the current mode (108Mbps (Dynamic), 108Mbps (Static),
54Mbps (802.11g), 11Mbps (802.11b)). If you select 108Mbps (Dynamic), it is
compatible with 54Mbps (802.11g) and 11Mbps (802.11b). If you select 54Mbps
(802.11g), it is compatible with 11Mbps (802.11b).
These settings are only for basic wireless parameters, for advanced settings, please
refer to
Section 5.5: "Wireless."
Note: The change of wireless settings won't take effect until the router reboots! You can
reboot it manually. If you need instructions as to how to do this, please refer to
Section
5.11.4: "Rebooting the Router"
Click the Next button, you will then see the Finish page:

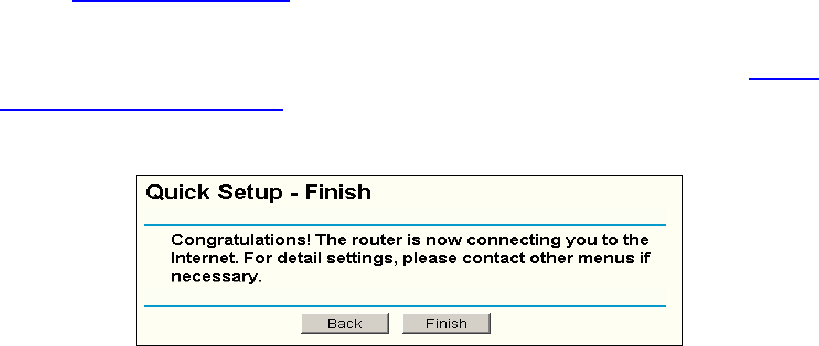

Figure 4-10 Quick Setup - Finish
After finishing all configurations of basic network parameters, please click Finish button
to exit this Quick Setup.
- 10 -
